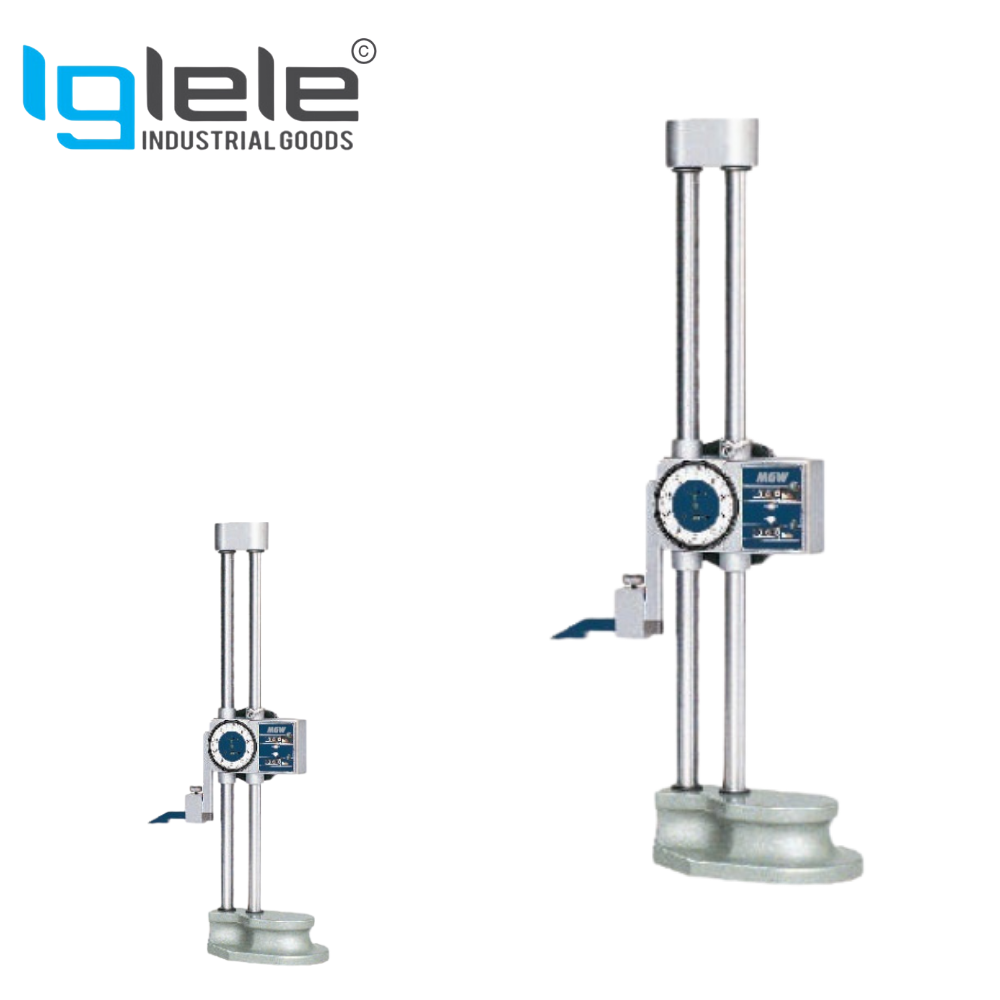

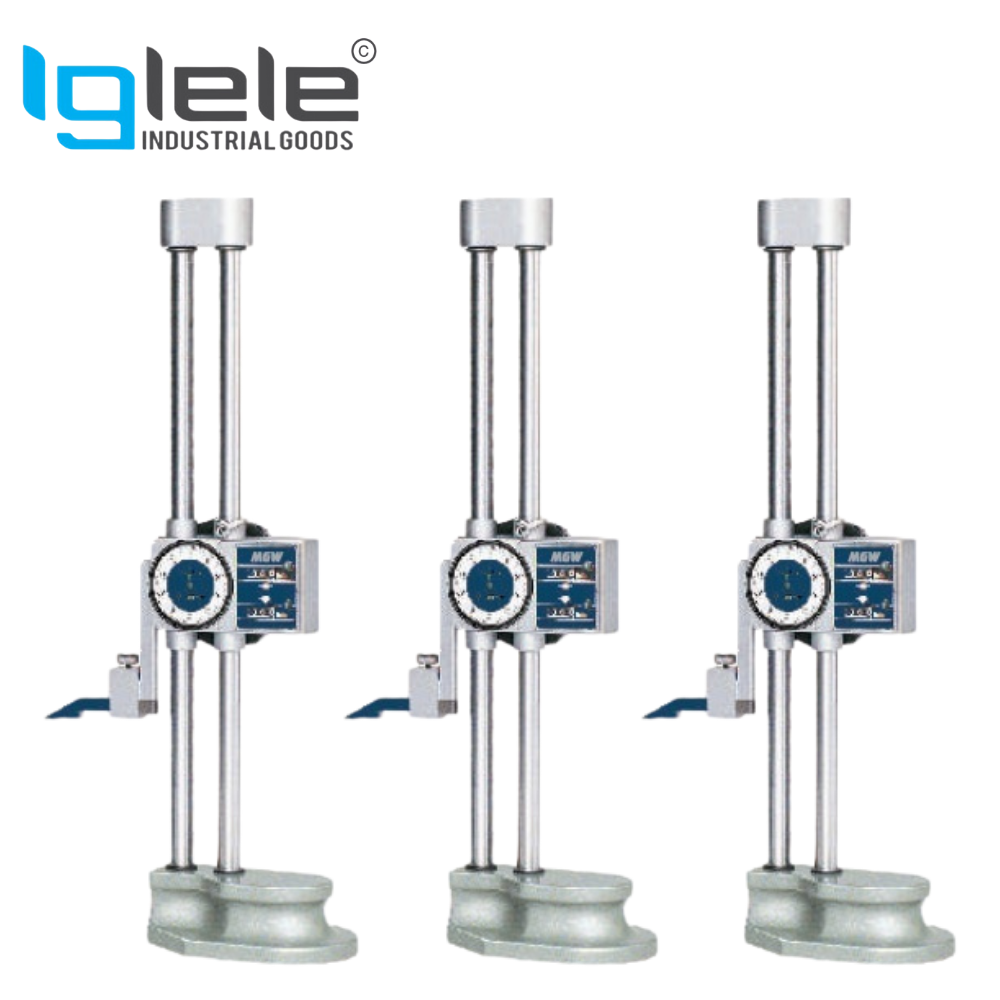

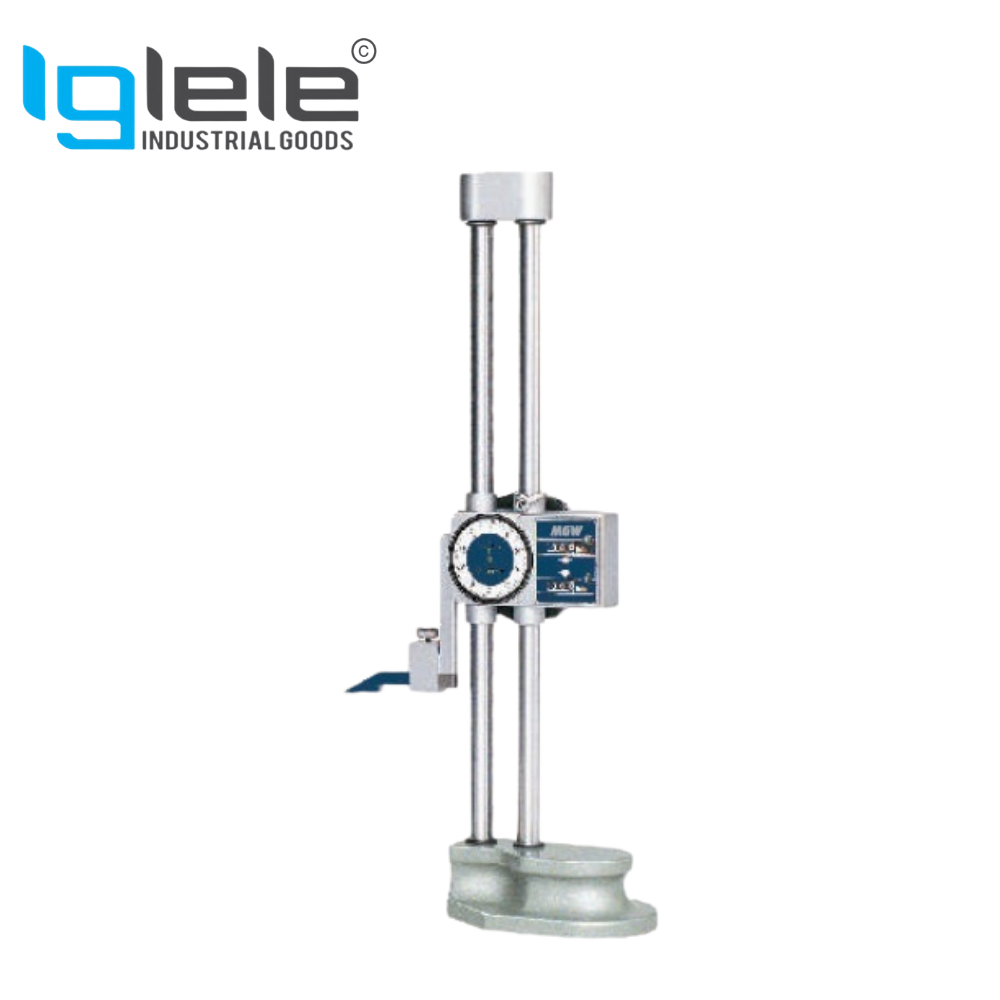

Double Column Height Gauge Digit Dial Type

Features of a Double Column Height Gauge (Digit Dial Type):

• High Measurement Accuracy: Typically accurate up to 0.01 mm or 0.0005 inches, ideal for precision applications.

• Double Column Structure: Provides enhanced stability and rigidity, minimizing bending or deformation during measurement.

• Digit Dial Display: Easy-to-read analog dial with a clear graduation scale for precise readings.

• Sturdy Base: Heavy-duty cast iron or granite base to ensure stable and vibration-free measurements.

• Fine Adjustment Mechanism: Smooth and precise adjustment for accurate height setting.

• Locking Screw: Secures the height setting to maintain consistent measurements.

• Carbide-Tipped Scriber: Durable and wear-resistant, suitable for scribing lines on hard surfaces.

• Dual Measurement System: Some models feature both metric and inch scales for versatility.

• Sliding and Clamping Mechanism: Allows for smooth movement and firm locking of the measuring head.

• Ergonomic Handwheel: Facilitates fine height adjustments with ease.

Applications And Uses :

• • Manufacturing and Quality Control: Precisely measures the height of components to ensure dimensional accuracy during production.

  • Mechanical Engineering: Used for height and marking measurements of machine parts in workshops.

  • Metalworking: Ideal for scribing reference lines, checking flatness, and verifying part dimensions.

  • Automotive Industry: Measures the height and alignment of engine parts, brake components, and assemblies.

  • Tool and Die Making: Essential for setting up and inspecting molds, dies, and jigs with high accuracy.

  • Aerospace Industry: Ensures accurate height measurement of critical aircraft components.

  • Laboratory and Research: Used for precise measurement in experiments and material testing setups.

  • Calibration and Inspection: Verifies the height of gauges, fixtures, and other measuring instruments.

  • Fabrication Workshops: Marks heights on metal sheets, plates, or workpieces for cutting or machining.

  • Educational and Training Institutes: Used for teaching precision measurement techniques in technical courses.

We specialise in supplying a comprehensive range of Iglele Double Column Height Gauge Digit Dial Type Wireguard tailored to diverse industrial needs. Double Column Height Gauge Digit Dial Type   Wireguard  Engineered for durability and performance in your industrial applications.
