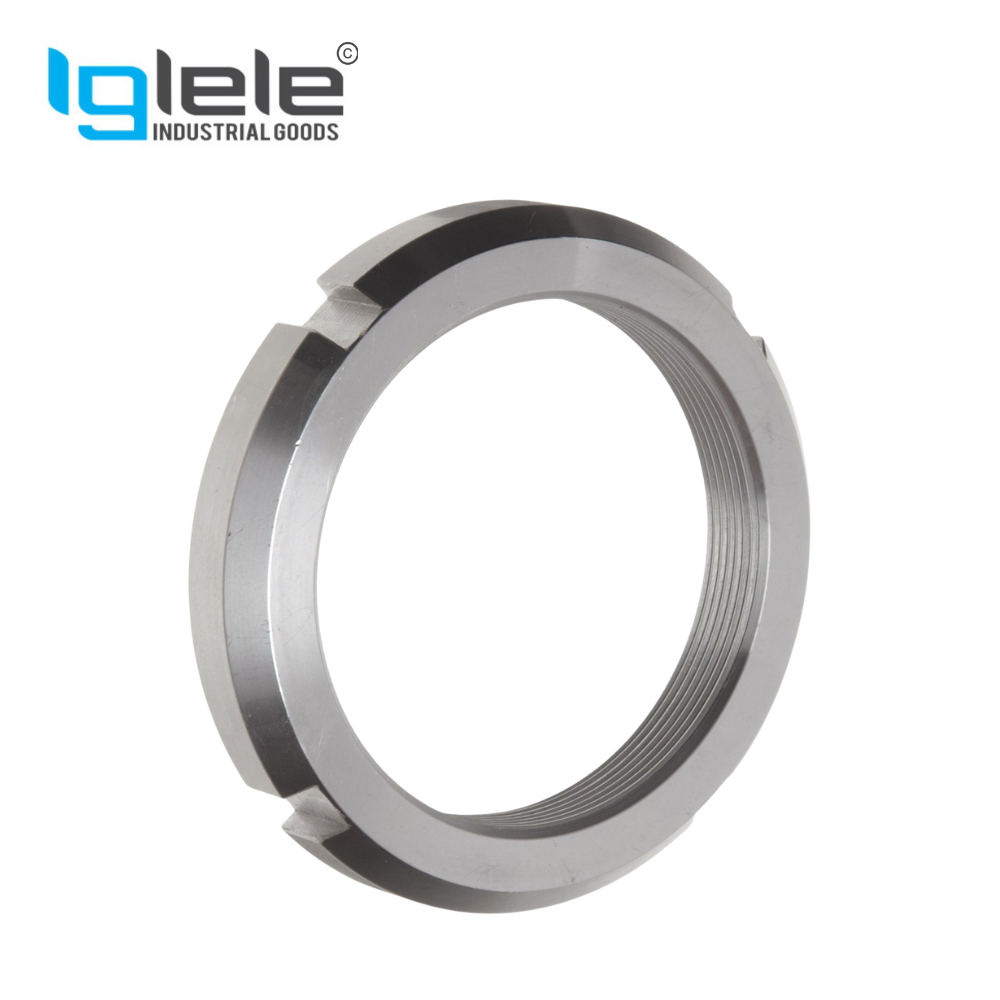

LOCKNUT KM
LOCKNUT KM - Image 2
LOCKNUT KM - Image 3
SKU-LKW-LOCKNUT-KB

LOCKNUT KM

Brand Make in India
Product Code LKN
Availability 48 Hrs
Material SS
CLASS Haeavy Duty
Type Box Packed
MOU NOS
SKU: LKN
Availability:

1000 in stock

₹189.29 ₹66.25

LOCKNUT KM

IGLELE KM Locknut Dimensions Table – KM Series SKU: LKN
Metric Lock Nuts, DIN 981 – ISO 2982, C20 Steel
Code D3 D4 G D1 C S T D6 Weight (Kg)
KM00 18 13 14 M10 x 0.75 4 3 2 10.5 0.01
KM01 22 17 18 M12 x 1.00 4 3 2 12.5 0.01
KM02 25 21 21 M15 x 1.00 5 4 2 15.5 0.01
KM03 28 24 24 M17 x 1.00 5 4 2 17.5 0.01
KM04 32 26 26 M20 x 1.00 6 4 2 20.5 0.02
KM05 38 32 34 M25 x 1.50 7 5 2 25.8 0.03
KM06 45 38 41 M30 x 1.50 7 5 2 30.8 0.04
KM07 52 44 48 M35 x 1.50 8 5 2 35.8 0.05
KM08 58 50 53 M40 x 1.50 9 6 2.5 40.8 0.09
KM09 65 56 60 M45 x 1.50 10 6 2.5 45.8 0.12
KM10 70 61 65 M50 x 1.50 11 6 2.5 50.8 0.15
KM11 75 67 69 M55 x 2.00 11 7 3 56 0.16
KM12 80 73 74 M60 x 2.00 11 7 3 61 0.17
KM13 85 79 79 M65 x 2.00 12 7 3 66 0.20
KM14 95 85 85 M70 x 2.00 12 8 3.5 71 0.24
KM15 98 90 91 M75 x 2.00 13 8 3.5 76 0.29
KM16 105 95 98 M80 x 2.00 15 8 3.5 81 0.40
KM17 110 102 103 M85 x 2.00 16 8 3.5 86 0.45
KM18 120 108 112 M90 x 2.00 16 10 4 91 0.56
KM19 125 113 117 M95 x 2.00 17 10 4 96 0.66
KM20 130 120 122 M100 x 2.00 18 10 4 101 0.70
KM21 140 126 130 M105 x 2.00 18 12 5 106 0.85
KM22 145 133 135 M110 x 2.00 19 12 5 111 0.97
KM23 150 137 140 M115 x 2.00 19 12 5 116 1.01
KM24 155 138 145 M120 x 2.00 20 12 5 121 1.08
KM25 160 148 150 M125 x 2.00 21 12 5 126 1.19
KM26 165 149 155 M130 x 2.00 21 12 5 131 1.25
KM27 175 160 163 M135 x 2.00 22 14 6 136 1.55
KM28 180 160 168 M140 x 2.00 22 14 6 141 1.56
KM29 190 171 178 M145 x 2.00 24 14 6 146 2.00
KM30 195 172 183 M150 x 2.00 24 14 6 151 2.03
KM31 200 182 186 M155 x 3.00 25 16 7 156.5 2.21
KM32 210 182 196 M160 x 3.00 25 16 7 161.5 2.59
KM33 210 193 196 M165 x 3.00 26 16 7 166.5 2.43
KM34 220 193 206 M170 x 3.00 26 16 7 171.5 2.80
KM36 230 203 214 M180 x 3.00 27 18 8 181.5 3.07
KM38 240 214 224 M190 x 3.00 28 18 8 191.5 3.39
KM40 250 226 234 M200 x 3.00 29 18 8 – –

Disclaimer: The sizes mentioned are approximate and may vary slightly from product to product. Please confirm all dimensions and specifications twice before placing your order.



Features of Locknut KM:

  • Threaded Design:

    • Precision ISO metric threads for secure mounting of bearings on shafts.

  • High-Grade Material:

    • Manufactured from high-quality steel, ensuring strength, durability, and resistance to wear and corrosion.

  • Slotted Construction:

    • Features axial slots on the circumference for easy tightening with hook or impact spanners.

  • Locking Mechanism:

    • Used with tab washers (MB series) or locking clips to prevent loosening due to vibration or rotation.

  • Standardized Dimensions:

    • Conforms to DIN 981 and ISO 2982-2 standards, ensuring compatibility and interchangeability.

  • Easy Installation & Removal:

    • Facilitates quick and safe mounting/dismounting of bearings, sleeves, or other machine components.

  • Versatile Applications:

    • Commonly used in mechanical assemblies such as gearboxes, motors, conveyors, and other rotating equipment.



Applications And Uses :

  • Bearing Mounting:

    • Secures bearings onto tapered shaft seats or adapter sleeves in rotating machinery.

  • Gearboxes and Transmissions:

    • Maintains axial positioning of components under dynamic load conditions.

  • Electric Motors:

    • Holds bearings in place on motor shafts, preventing axial displacement during operation.

  • Pumps and Compressors:

    • Ensures stable and reliable mounting of shaft-mounted components in high-vibration environments.

  • Machine Tool Spindles:

    • Provides precise axial location for high-speed spindle assemblies.

  • Wind Turbines:

    • Used in bearing arrangements for turbine shafts, withstanding harsh weather and load conditions.

  • Conveyor Systems:

    • Maintains alignment and position of pulleys and rollers.

  • Agricultural and Construction Machinery:

    • Secures rotating elements subject to impact and shock loads.

      Mining and Heavy Equipment:

      • Applied in rugged settings where reliable bearing positioning is critical.



We specialise in supplying a comprehensive range of Iglele LOCKNUT KM   Wireguard tailored to diverse industrial needs. LOCKNUT KM   Wireguard  Engineered for durability and performance in your industrial applications.
