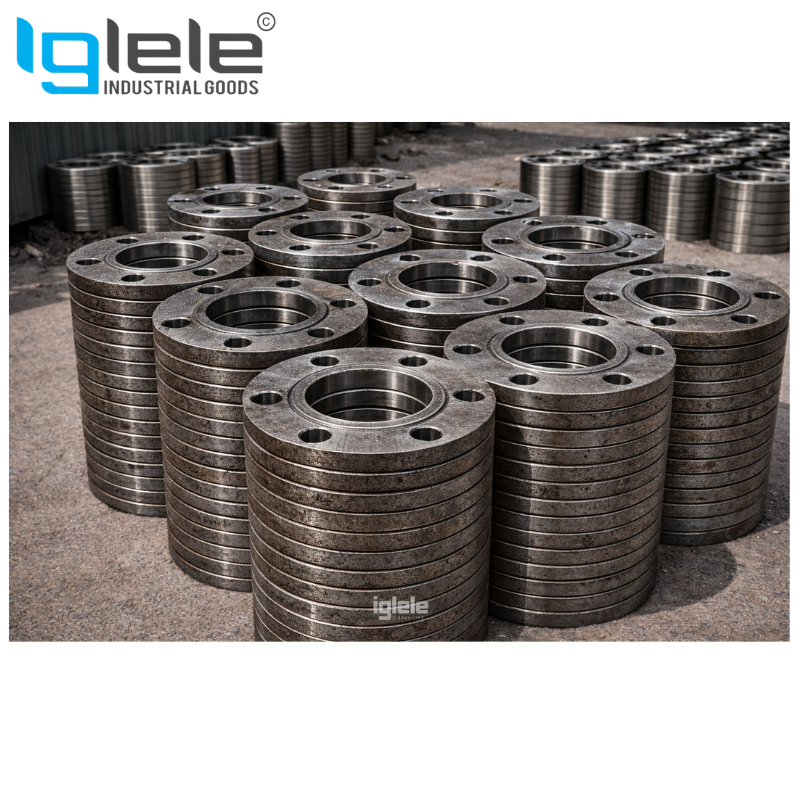

Iglele MS Slip On Flange PN10 / PN16 – DIN EN 1092-1, Mild Steel Industrial Flange

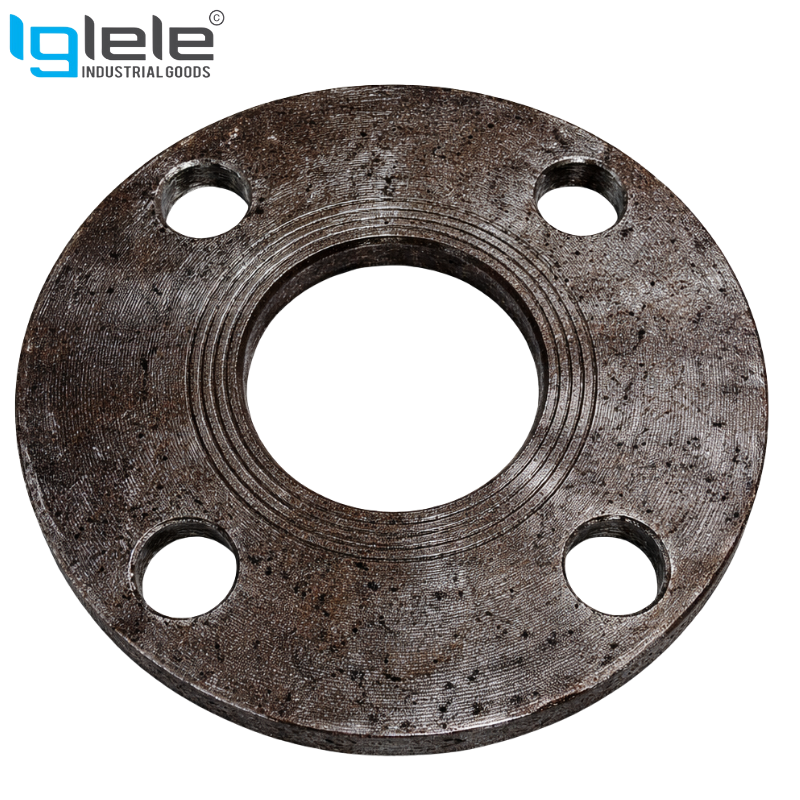

Iglele MS Slip On Flange PN10 / PN16 – DIN EN 1092-1, Mild Steel Industrial Flange - Image 2

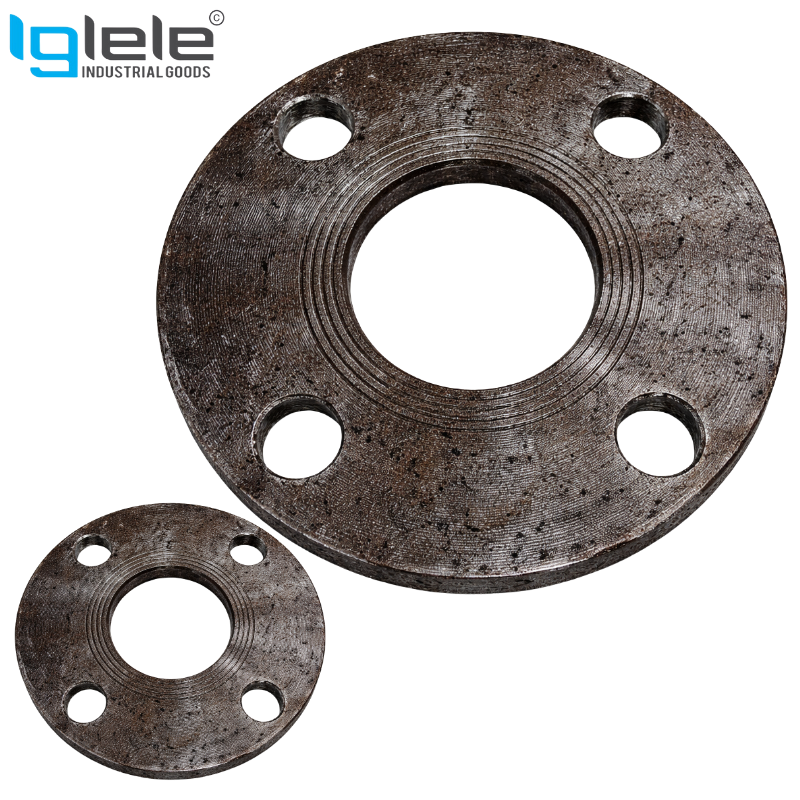

Iglele MS Slip On Flange PN10 / PN16 – DIN EN 1092-1, Mild Steel Industrial Flange - Image 3

Iglele MS Slip On Flange PN10 / PN16 – DIN EN 1092-1, Mild Steel Industrial Flange

IGLELEMake in India
Brand Make in India
Product Code MSFL16
Availability 48 Hrs
Class/Table ND10/16
Standard/Pressure As Per BS-10,ASA,ISS OR DIN
Finish One Sided Machined
Material M.S (Mild Steel)

Flanges specifications, including pressure, temperature, and material, may vary between manufacturers and sizes; customers are urged to order accordingly.

SKU: MSFL16
Availability:

1000 in stock

₹141.00 ₹99.00

🔵 MS Flange – ND10 / ND16 (PN10 / PN16) | IGLELE Product Data Sheet

Manufacturer & Exporter – Iglele – Industrial Goods Le Le 💼📦✨

🔷 Product Overview

IGLELE Mild Steel (MS) ND10 & ND16 flanges are manufactured as per DIN / EN 1092-1 standards and are used for medium and high-pressure piping systems in water, oil, fire-fighting, chemical plants, HVAC and industrial pipelines.

  • ND10 (PN10) → 10 Bar pressure rating

  • ND16 (PN16) → 16 Bar pressure rating

These flanges provide high strength, accurate bolt alignment and leak-proof sealing.

🔷 MS Flange – PN10 / PN16 (EN 1092-1 / DIN Standard)

(NB Size Chart up to 36″)

📘 Standard Information

  • Standard: EN 1092-1 (DIN)

  • Pressure Rating: PN10 / PN16

  • Material: Mild Steel (MS)

  • Facing: Raised Face (RF) / Flat Face

  • Type: Slip-On / Weld Neck / Blind

  • Application: Water, Fire Line, HVAC, Chemical & General Industrial Service

📏 All dimensions in mm (Standard Reference Values)

📊 PN10 Dimension Chart / Data Sheet

DN (NB) Pipe OD Flange OD PCD No. of Bolts Bolt Dia Thickness
15 21.3 95 65 4 14 14
20 26.7 105 75 4 14 16
25 33.4 115 85 4 14 16
32 42.2 140 100 4 18 18
40 48.3 150 110 4 18 18
50 60.3 165 125 4 18 20
65 76.1 185 145 4 18 20
80 88.9 200 160 8 18 20
100 114.3 220 180 8 18 22
125 139.7 250 210 8 18 22
150 168.3 285 240 8 22 24
200 219.1 340 295 8 22 24
250 273.0 395 350 12 22 26
300 323.9 445 400 12 22 26
350 355.6 505 460 16 22 28
400 406.4 565 515 16 26 28
450 457.2 615 565 20 26 30
500 508.0 670 620 20 26 30
600 609.6 780 725 20 30 32
700 711.2 895 840 24 30 34
800 812.8 1015 950 24 33 36
900 914.4 1115 1050 28 33 38

📊 PN16 Dimension Chart / Data Sheet

DN (NB) Pipe OD Flange OD PCD No. of Bolts Bolt Dia Thickness
15 21.3 95 65 4 14 16
20 26.7 105 75 4 14 18
25 33.4 115 85 4 14 18
32 42.2 140 100 4 18 20
40 48.3 150 110 4 18 20
50 60.3 165 125 4 18 22
65 76.1 185 145 8 18 22
80 88.9 200 160 8 18 24
100 114.3 220 180 8 18 24
125 139.7 250 210 8 18 26
150 168.3 285 240 8 22 26
200 219.1 340 295 12 22 28
250 273.0 405 355 12 26 30
300 323.9 460 410 12 26 30
350 355.6 520 470 16 26 32
400 406.4 580 525 16 30 34
450 457.2 640 585 20 30 36
500 508.0 715 650 20 33 38
600 609.6 840 770 20 36 42
700 711.2 910 840 24 36 44
800 812.8 1025 950 24 39 46
900 914.4 1125 1050 28 39 48

🔷 Standards & Compliance

  • DIN / EN 1092-1

  • PN10 / PN16 Pressure Rating

  • IS 2062 / ASTM A36 (Material)

🔷 Material & Finish

  • Mild Steel (MS)

  • Carbon Steel

  • Stainless Steel (optional)

  • Black, Zinc Plated, Hot-Dip Galvanized

🔷 Flange Types

Plate Flange | Slip-On | Weld-Neck | Blind

🔷 Applications

Water supply, Fire-fighting, Oil & gas, Chemical plants, HVAC, Utility & industrial piping

🔷 Custom Manufacturing – IGLELE

IGLELE manufactures DIN, BS, ANSI and special flanges in MS, SS, Carbon Steel, Alloy Steel and Duplex grades, including special OD, PCD, thickness and drawing-based flanges.

🔵 Order Now – Contact IGLELE

📞 +91 9800150888
📧 sales@iglele.com
🌐 www.iglele.com

Iglele – Industrial Goods Le Le 💼📦✨

<small>Disclaimer: All dimensions shown are based on DIN / EN commercial standards. Actual dimensions may vary slightly due to manufacturing tolerances and commercial production practices. Buyers must verify all critical dimensions before ordering. IGLELE shall not be responsible for any mismatch arising from commercial flange supply. For projects requiring precise tolerances or special standards, please contact IGLELE before ordering.</small>

SKU: MSFL16 Category:
Flange End Dimension

1/2"(15MM), 3/4"(20MM), 1"(25MM), 11/4"(32MM), 11/2"(40MM), 2"(50MM), 21/2"(65MM), 3"(80MM), 4"(100MM), 5"(125MM), 6"(150MM), 8"(200MM), 10"(250MM), 12"(300MM), 14"(350MM), 16"(400MM), 18"(450MM), 20"(500MM), 24"(600MM)
