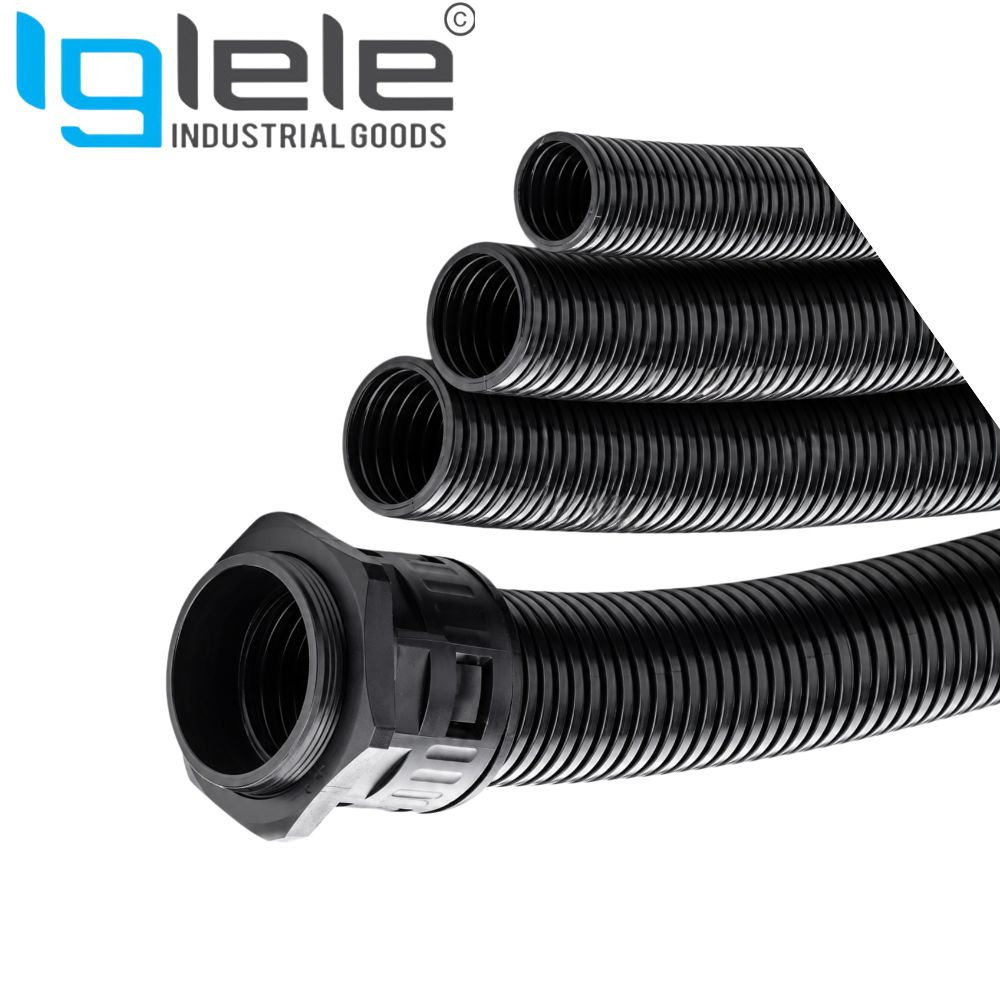

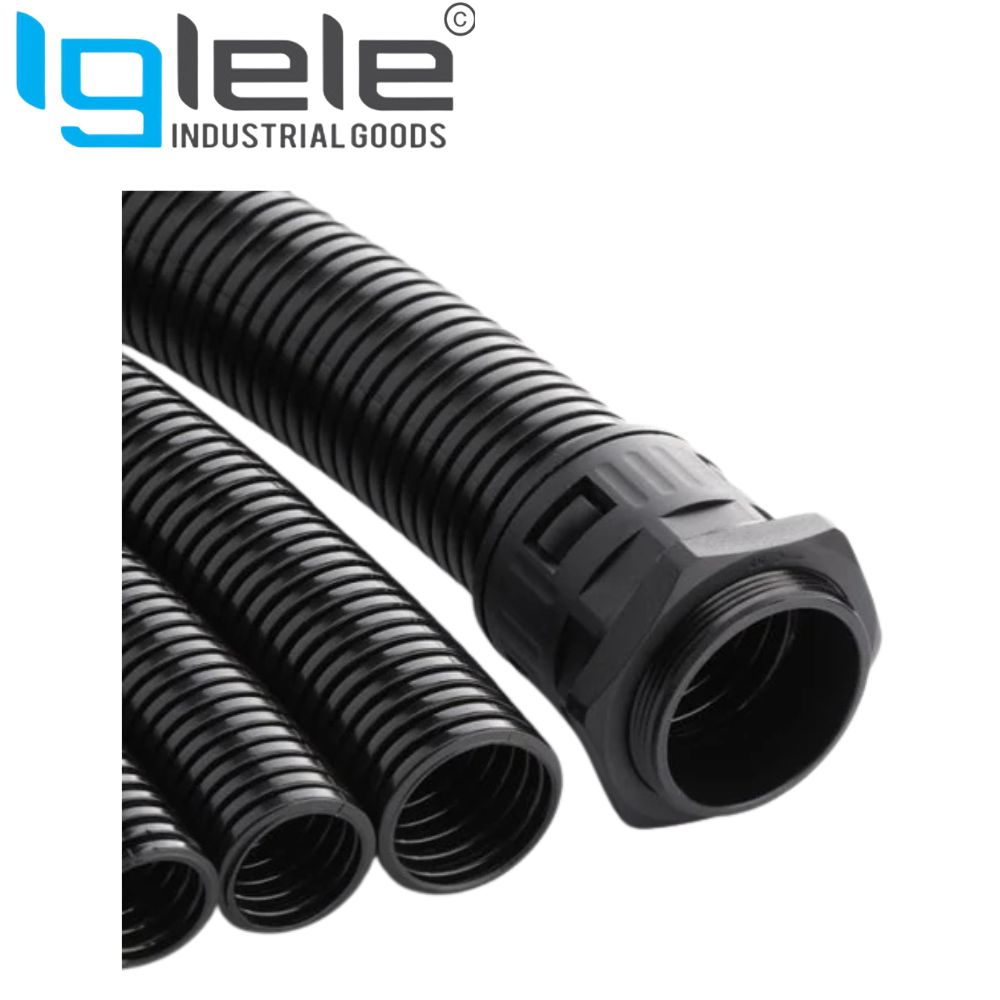

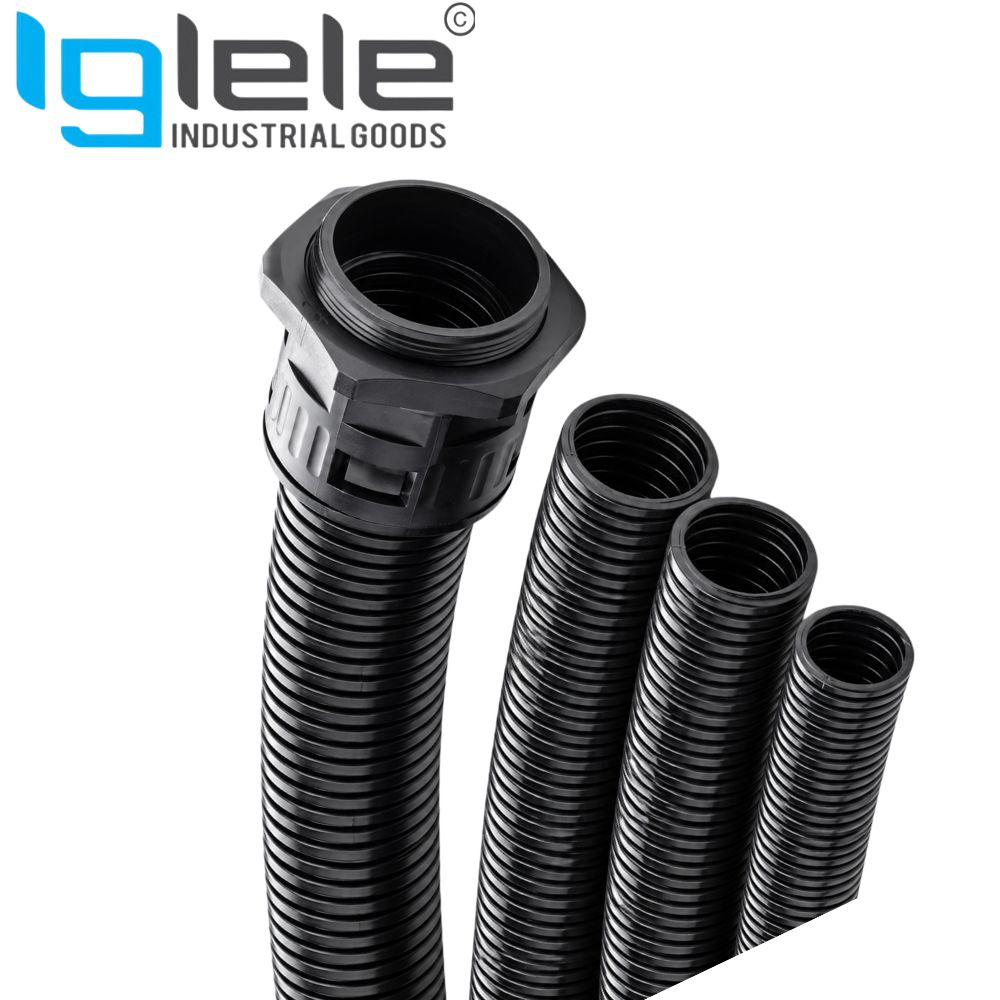

PA Flexible Gland – Nylon Cable Gland for Flexible Conduit
PA Flexible Gland – Nylon Cable Gland for Flexible Conduit - Image 2
PA Flexible Gland – Nylon Cable Gland for Flexible Conduit - Image 3

PA Flexible Gland – Nylon Cable Gland for Flexible Conduit

Phoneix
Specification Details
Brand PHONEIX
Product Code / SKU GLPG
Availability Ready Stock – Dispatch within 24–48 Hours
Material PA6 Polyamide (Nylon) with NBR/EPDM Rubber Seal
Thread Type PG & Metric Threads
Protection Rating IP68 (Model Dependent)
Temperature Range -40°C to +100°C
Colour Black / Grey
Application Flexible Conduit Connections, Electrical Panels, Control Panels, Industrial Machinery, Automation Systems, Cable Management, Solar Installations & General Electrical Wiring
SKU: GLPG
Availability:

100 in stock

₹46.40 ₹32.48

PA Flexible Gland – Nylon Cable Gland for Flexible Conduit

Product Overview

Parameter Details
Product Name PA Flexible Gland
Type Nylon Cable Gland for Flexible Conduit
Brand PHONEIX
Material Polyamide (PA6 Nylon)
Thread Type PG / Metric Threads
Protection Rating Up to IP68 (Model Dependent)
Application Flexible Conduit & Cable Entry Protection

Key Features

  • Premium Polyamide (PA6 Nylon) construction
  • Suitable for flexible conduit connections
  • High mechanical strength
  • Excellent cable sealing performance
  • Water and dust-resistant design
  • Corrosion and chemical resistant
  • UV-resistant material
  • Easy and quick installation
  • Vibration-resistant locking system
  • Suitable for indoor and outdoor applications
  • Long service life
  • Available in multiple thread sizes

Size Chart

Thread Size Suitable Conduit Size
PG7 10 mm
PG9 12 mm
PG11 16 mm
PG13.5 20 mm
PG16 25 mm
PG21 32 mm
PG29 40 mm
PG36 50 mm
M16 10–12 mm
M20 16 mm
M25 20 mm
M32 25 mm

Material

Component Material
Gland Body Polyamide (PA6 Nylon)
Lock Nut Nylon
Seal NBR / EPDM Rubber
Clamping Insert Polyamide

Where It Is Used / Applications

Industry Application
Electrical Panels Cable Entry Protection
Automation Systems Flexible Conduit Connection
Industrial Machinery Cable Management
Control Panels Wire Protection
Solar Power Plants Outdoor Cable Entry
Telecommunications Cable Routing
Railway & Infrastructure Electrical Wiring
Marine & Offshore Moisture-Protected Cable Installation

How to Use

  1. Select the correct gland size for the conduit.
  2. Insert the cable through the gland.
  3. Fit the gland into the panel or enclosure.
  4. Tighten the lock nut securely.
  5. Tighten the sealing cap until the cable is firmly clamped.
  6. Ensure a waterproof and dustproof seal.
  7. Inspect periodically for secure fastening.

Technical Details & Specifications

Specification Details
Product Type Flexible Conduit Gland
Material PA6 Nylon
Thread Type PG / Metric
Protection Class IP68 (Model Dependent)
Flame Resistance Self-Extinguishing
Operating Environment Indoor & Outdoor
Installation Panel Mount

Construction Details

Component Description
Body High-Strength Nylon
Seal NBR / EPDM Waterproof Seal
Clamping Insert Secure Cable Grip
Lock Nut Nylon Threaded Lock Nut

Available Standard Sizes

  • PG7
  • PG9
  • PG11
  • PG13.5
  • PG16
  • PG21
  • PG29
  • PG36
  • M16
  • M20
  • M25
  • M32

Custom sizes available on request.

Advantages

  • High mechanical strength
  • Excellent sealing performance
  • Waterproof and dustproof
  • Corrosion resistant
  • Chemical resistant
  • UV resistant
  • Easy installation
  • Lightweight construction
  • Long service life
  • Maintenance free

Temperature & Other Details

Parameter Details
Working Temperature -40°C to +100°C
Protection Rating IP68 (Model Dependent)
Flame Resistance Self-Extinguishing
UV Resistance Excellent
Chemical Resistance Good
Corrosion Resistance Excellent
Outdoor Use Suitable

Package Includes

Item Quantity
PA Flexible Gland As Ordered
Lock Nut Included
Rubber Seal Included

Custom Manufacturing & Bulk Orders

PHONEIX / IGLELE offers:

  • Custom thread sizes
  • OEM & private label manufacturing
  • Custom colours
  • Bulk industrial supply
  • Wholesale and export orders
  • Project-based cable management solutions

Contact IGLELE for Bulk & Custom Orders

IGLELE E Commerce LLP

Website: IGLELE.com
Phone: +91 9800150888
Email: sales@iglele.com

Contact IGLELE for bulk pricing, OEM manufacturing, custom nylon cable glands, flexible conduit fittings, electrical cable protection products, and industrial cable management solutions.
