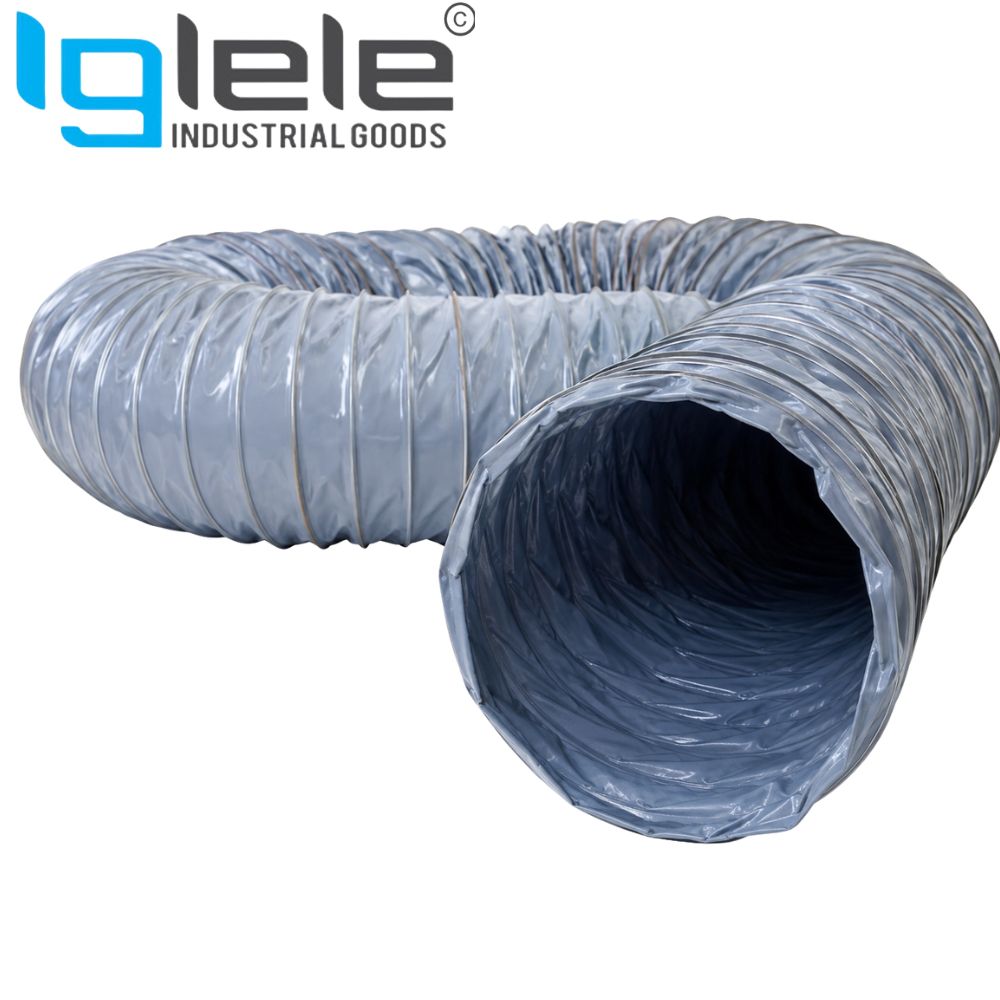

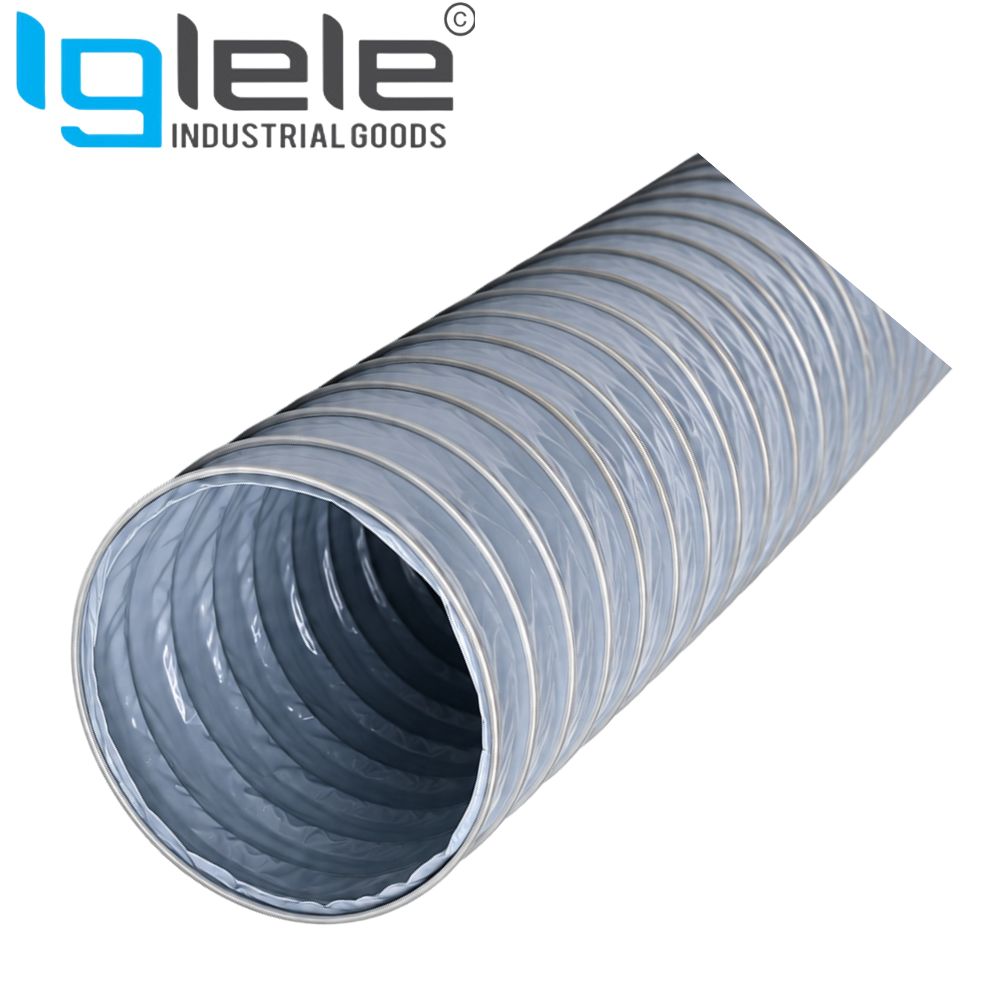

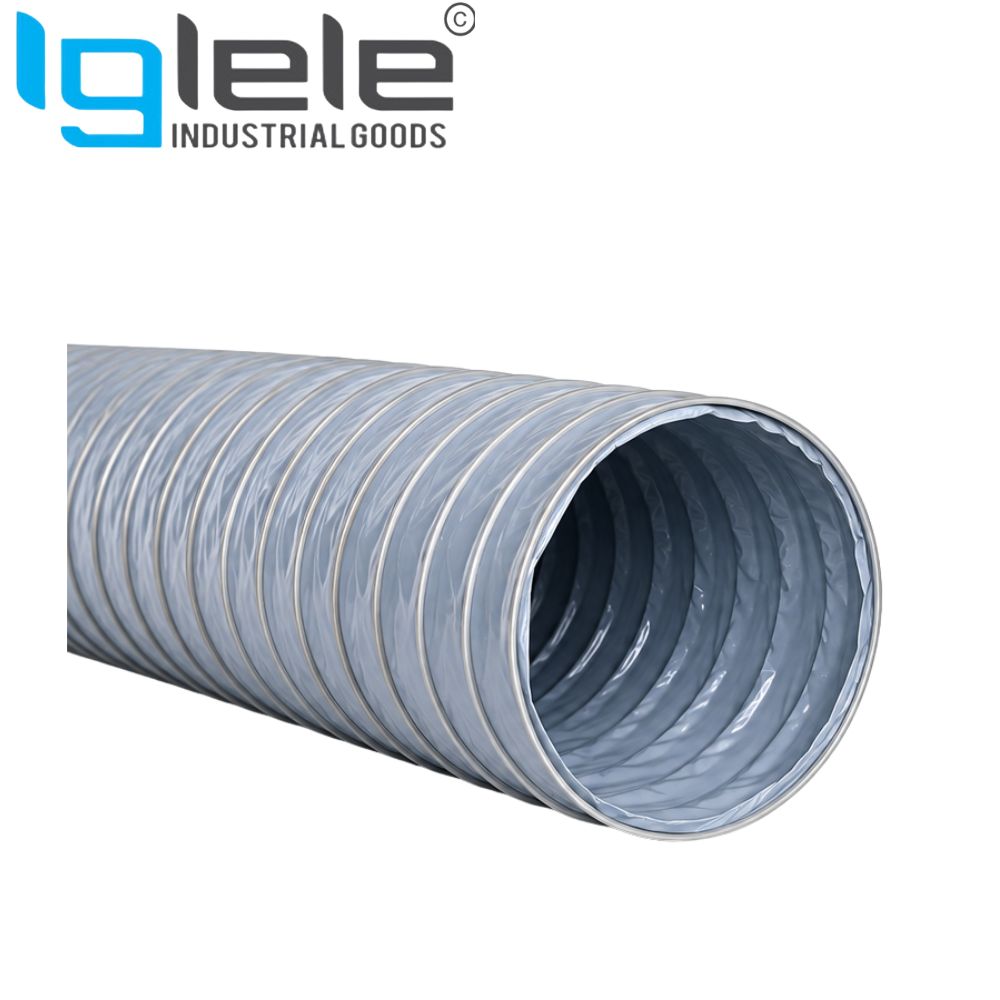

PVC Fabric Duct Hose – Flame Retardant Flexible HVAC Ventilation & Fume Extraction Hose (Per Meter)
PVC Fabric Duct Hose – Flame Retardant Flexible HVAC Ventilation & Fume Extraction Hose (Per Meter) - Image 2
PVC Fabric Duct Hose – Flame Retardant Flexible HVAC Ventilation & Fume Extraction Hose (Per Meter) - Image 3

PVC Fabric Duct Hose – Flame Retardant Flexible HVAC Ventilation & Fume Extraction Hose (Per Meter)

Phoneix
Specification Details
Brand PHONEIX
Product Code / SKU FAB
Availability Ready Stock – Dispatch within 24–48 Hours
Material PVC-Coated Fabric with High-Tensile Spring Steel Wire Reinforcement
Supply Length Per Meter
Temperature Range -20°C to +60°C
Colour Grey / Yellow (Depending on Model)
Application HVAC Ventilation, Air Handling Systems, Fume Extraction, Dust Collection, Industrial Ventilation, Construction Sites, Tunnels, Warehouses, Workshops & Commercial Air Distribution
SKU: FAB
Availability:

100 in stock

₹543.75 ₹380.63

PVC Fabric Duct Hose – Flame Retardant Flexible HVAC Ventilation & Fume Extraction Hose (Per Meter)

Product Overview

Parameter Details
Product Name PVC Fabric Duct Hose
Type Flame Retardant Flexible HVAC Ventilation & Fume Extraction Hose
Brand PHONEIX
Selling Unit Per Meter
Material PVC Coated Fabric with Spring Steel Wire Reinforcement
Working Media Air, Dust, Fumes & Ventilation Air
Application HVAC Systems, Ventilation & Fume Extraction

Key Features

  • Premium PVC-coated fabric construction
  • Flame-retardant material
  • Flexible and lightweight design
  • Reinforced with high-tensile spring steel wire
  • Excellent bend radius and flexibility
  • Smooth airflow with low pressure loss
  • Resistant to abrasion, moisture, and weather
  • Easy to install and transport
  • Suitable for positive and negative air pressure systems
  • Long service life with low maintenance

Size Chart

Inner Diameter (ID) Approx. Inch Supply
100 mm 4″ Per Meter
150 mm 6″ Per Meter
200 mm 8″ Per Meter
250 mm 10″ Per Meter
300 mm 12″ Per Meter
350 mm 14″ Per Meter
400 mm 16″ Per Meter
450 mm 18″ Per Meter
500 mm 20″ Per Meter

Material

Component Material
Hose Wall PVC Coated Fabric
Reinforcement High-Tensile Spring Steel Wire
Outer Surface Flame Retardant PVC Coating

Where It Is Used / Applications

Industry Application
HVAC Systems Air Supply & Return Air
Industrial Plants Ventilation Systems
Welding Workshops Fume Extraction
Construction Sites Temporary Ventilation
Shipyards Air Circulation
Tunnels Fresh Air Supply
Warehouses Exhaust Ventilation
Chemical Plants Air & Light Fume Extraction
Manufacturing Units Dust Collection

How to Use

  1. Select the appropriate hose diameter.
  2. Connect the hose to the ventilation or extraction system.
  3. Secure with duct clamps or connectors.
  4. Avoid excessive twisting or sharp bends.
  5. Operate within the recommended pressure and temperature range.
  6. Inspect regularly for wear or damage.
  7. Store rolled in a dry location when not in use.

Technical Details & Specifications

Specification Details
Product Type Flexible PVC Fabric Duct Hose
Material PVC Coated Fabric
Reinforcement Spring Steel Wire
Construction Spiral Reinforced Flexible Hose
Working Media Air, Dust & Light Fumes
Flexibility Excellent
Installation Clamp / Duct Connector
Flame Retardant Yes

Construction Details

Layer Description
Inner Layer Smooth PVC Coated Fabric
Reinforcement High-Tensile Spring Steel Wire
Outer Layer Flame Retardant PVC Protective Coating

Available Standard Sizes

  • 100 mm (4″)
  • 150 mm (6″)
  • 200 mm (8″)
  • 250 mm (10″)
  • 300 mm (12″)
  • 350 mm (14″)
  • 400 mm (16″)
  • 450 mm (18″)
  • 500 mm (20″)

Custom diameters and lengths available on request.

Advantages

  • Flame-retardant construction
  • Excellent flexibility
  • Lightweight and easy to handle
  • High airflow efficiency
  • Strong spiral reinforcement
  • Moisture and abrasion resistant
  • Easy installation
  • Durable construction
  • Suitable for HVAC and industrial ventilation
  • Long service life

Temperature & Other Details

Parameter Details
Working Temperature -20°C to +60°C
Working Media Air, Dust & Light Fumes
Flame Retardant Yes
Moisture Resistance Excellent
Abrasion Resistance Good
UV Resistance Moderate
Outdoor Use Suitable for temporary outdoor use
Pressure Suitable for ventilation and low-pressure air handling

Package Includes

Item Quantity
PVC Fabric Duct Hose Per Meter (As Ordered)

Custom Manufacturing & Bulk Orders

IGLELE offers:

  • Custom hose diameters
  • Custom lengths
  • OEM & private label manufacturing
  • Custom colours
  • Bulk industrial supply
  • Project-based manufacturing
  • Export and wholesale orders

Contact IGLELE for Bulk & Custom Orders

IGLELE E Commerce LLP

Website: IGLELE.com
Phone: +91 9800150888
Email: sales@iglele.com

Contact IGLELE for bulk pricing, OEM manufacturing, custom PVC fabric duct hoses, HVAC ventilation systems, industrial ducting solutions, and fume extraction applications.
