Silicone Sleeve – High Temperature Flexible Protective Insulation Sleeve (Per Meter)
Key Features :
- High-temperature flexible silicone construction
- Excellent heat and flame resistance
- Protects wires, cables, hoses and components
- Excellent flexibility and elasticity
- Good electrical insulation properties
- Resistant to ozone, UV and weathering
- Good abrasion and ageing resistance
- Easy to install and remove
- Lightweight and durable
- Long service life
Size Chart
| ID |
Approx. Inch |
Supply |
| 3 mm |
1/8″ |
Per Meter |
| 5 mm |
3/16″ |
Per Meter |
| 6 mm |
1/4″ |
Per Meter |
| 8 mm |
5/16″ |
Per Meter |
| 10 mm |
3/8″ |
Per Meter |
| 12 mm |
1/2″ |
Per Meter |
| 16 mm |
5/8″ |
Per Meter |
| 19 mm |
3/4″ |
Per Meter |
| 25 mm |
1″ |
Per Meter |
| 32 mm |
1-1/4″ |
Per Meter |
Applications
| Industry / Area |
Application |
| Electrical |
Wire & Cable Protection |
| Automotive |
Wire & Hose Protection |
| Electronics |
Component Insulation |
| Industrial |
Heat Protection |
| Machinery |
Cable & Hose Sleeving |
| Engineering |
Thermal Insulation |
| Power Equipment |
Electrical Protection |
| General Industry |
High-Temperature Protection |
Material
| Component |
Material |
| Sleeve Body |
High-Temperature Silicone Rubber |
| Insulation |
Silicone |
| Colour |
Red / Black / Transparent / As Required |
Where It Is Used / How to Use
- Select a sleeve size suitable for the cable, wire or hose.
- Cut the required length.
- Slide the sleeve over the component before final connection, or use an appropriate installation method.
- Ensure the sleeve is not excessively stretched.
- Keep away from sharp edges that may damage the sleeve.
- Check that the sleeve fully covers the required area.
Technical Details & Specifications
| Specification |
Details |
| Product Type |
Silicone Protective Sleeve |
| Material |
High-Temperature Silicone Rubber |
| Construction |
Flexible Tubular Sleeve |
| Function |
Thermal & Electrical Protection |
| Flexibility |
Excellent |
| Supply |
Per Meter |

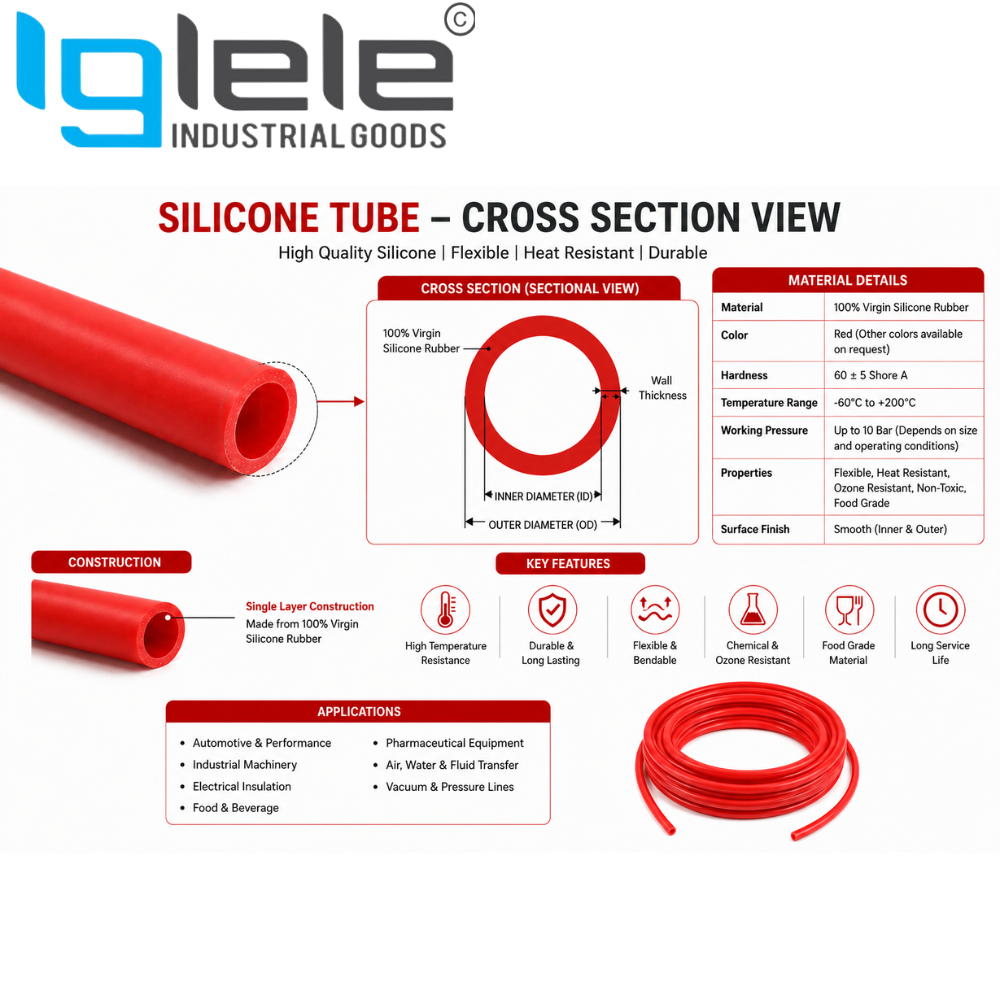

Construction Details
| Part |
Description |
| Sleeve Wall |
Flexible Silicone Rubber |
| Inner Surface |
Smooth Silicone |
| Outer Surface |
Heat & Abrasion-Resistant Silicone |
Available Standard Sizes
- 3 mm (1/8″)
- 5 mm (3/16″)
- 6 mm (1/4″)
- 8 mm (5/16″)
- 10 mm (3/8″)
- 12 mm (1/2″)
- 16 mm (5/8″)
- 19 mm (3/4″)
- 25 mm (1″)
- 32 mm (1-1/4″)
Custom sizes, colours and lengths available on request.
Advantages
- Excellent heat resistance
- Flexible and lightweight
- Good electrical insulation
- Protects against heat and abrasion
- Excellent ozone and UV resistance
- Easy installation
- Durable construction
- Long service life
- Low maintenance
- Suitable for industrial applications
Temperature & Other Details
| Parameter |
Details |
| Working Temperature |
Approx. -60°C to +250°C |
| Material |
Silicone Rubber |
| Heat Resistance |
Excellent |
| Electrical Insulation |
Good |
| UV Resistance |
Excellent |
| Ozone Resistance |
Excellent |
| Flexibility |
Excellent |
| Supply |
Per Meter |
Package Includes
| Item |
Quantity |
| Silicone Protective Sleeve |
Per Meter (As Ordered) |
Custom Manufacturing & Bulk Orders
IGLELE offers:
- Custom sleeve diameters
- Custom lengths
- Custom colours
- OEM & private-label manufacturing
- Bulk industrial supply
- Wholesale & export orders
- Custom insulation sleeve solutions
Contact IGLELE for Bulk & Custom Orders
IGLELE E Commerce LLP
Phone: +91 9800150888
Email: sales@iglele.com
Website: IGLELE.com
Contact IGLELE for bulk pricing, custom silicone sleeves, high-temperature insulation, cable protection and industrial thermal protection solutions.
