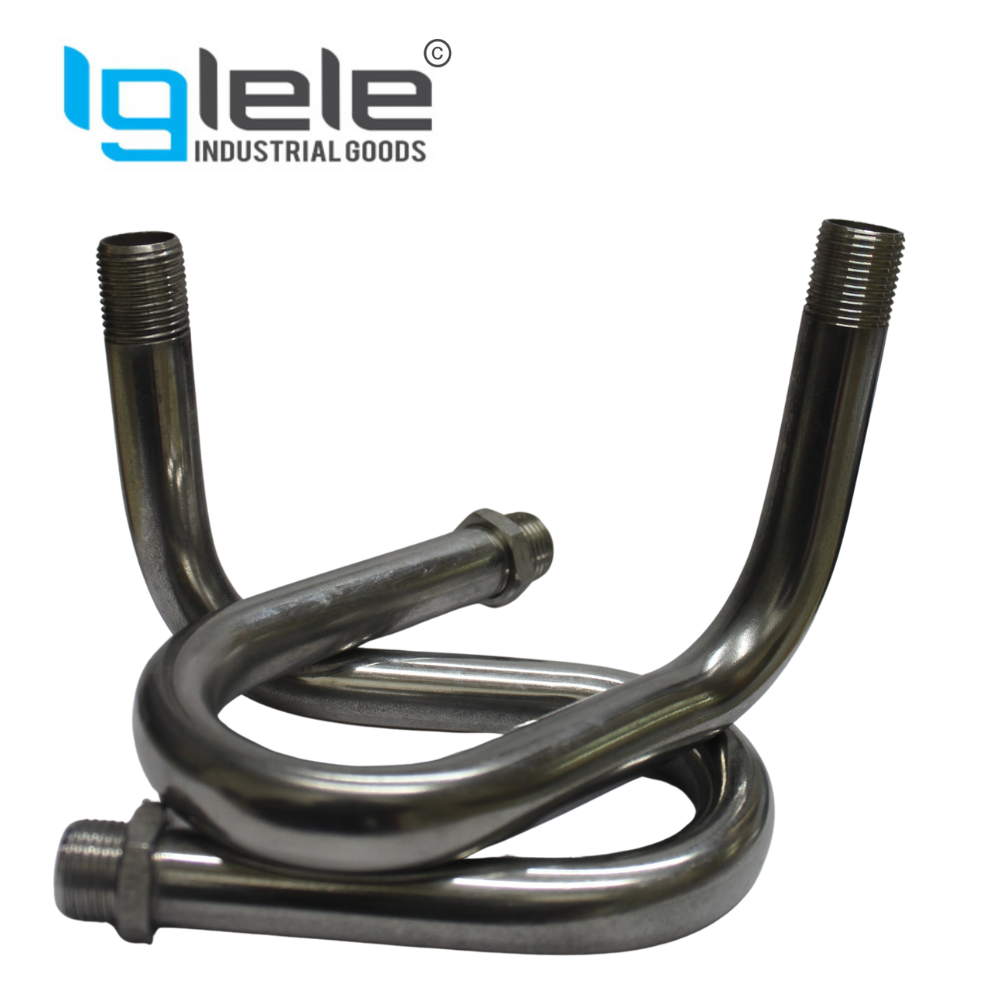

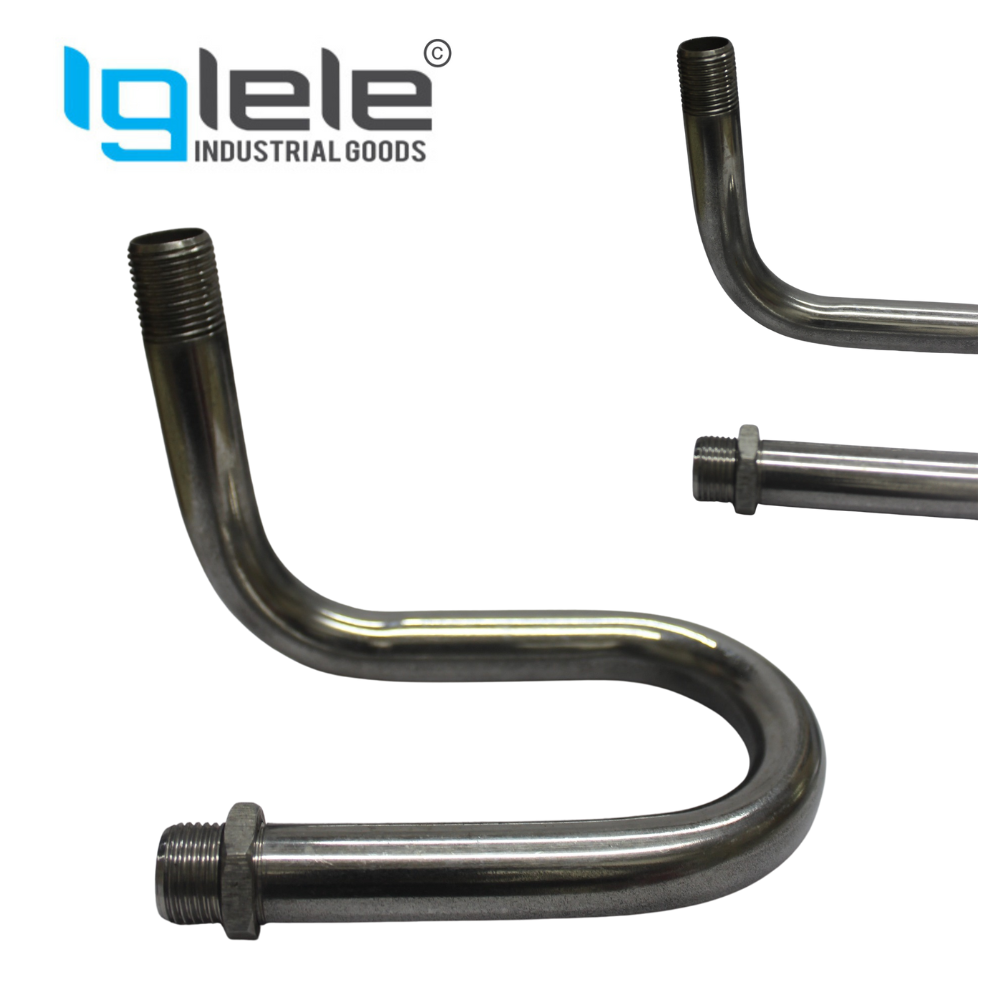

SS Syphon PIPE U TYPE

Features – SS Syphon Pipe (U Type) :

1. Efficient Pressure Dampening:

   • Protects pressure gauges and instruments by cooling and slowing down steam or hot fluid, preventing direct contact with high temperatures.

2. U-Shaped Design:

   • The U bend traps condensate, forming a protective water seal that acts as a barrier against hot steam or gases.

3. High-Grade Stainless Steel Construction:

   • Made from SS 304 or SS 316, offering excellent corrosion resistance and durability in aggressive media.

4. Threaded Ends for Easy Installation:

   • Supplied with standard BSP or NPT male threads, ensuring quick connection to gauges and process lines.

5. Suitable for High-Temperature Applications:

   • Withstands high steam temperatures and pressures, ideal for boiler systems and steam pipelines.

6. Maintenance-Free Operation:

   • Simple design requires no moving parts or frequent servicing, making it a low-maintenance component.

7. Smooth Internal Surface:

   • Ensures unrestricted fluid flow, reducing pressure drop and turbulence.

8. Long Service Life:

   • Built to handle thermal expansion, vibration, and pressure cycles for extended operational reliability.

9. Compact & Versatile:

   • The U-type shape is space-efficient and suitable for both vertical and horizontal installations.

10. Compliant with Industry Standards:

• Manufactured to meet industrial piping and instrumentation standards for pressure safety components.

Application of uses :

1. Steam Pressure Gauge Protection:

   • Prevents direct contact of high-temperature steam with pressure gauges by forming a water seal, protecting the gauge from heat damage.

2. Boiler and Steam Line Monitoring:

   • Widely used in boiler drum, superheater, and steam header lines to safely connect pressure instruments.

3. Industrial Process Piping:

   • Installed in chemical plants, refineries, and power plants where steam or hot gases are monitored.

4. Petrochemical and Oil & Gas Applications:

   • Ensures accurate pressure reading and protects instruments in high-temperature, high-pressure environments.

5. Power Generation Plants:

   • Used with pressure gauges in turbine steam lines and boiler systems to provide thermal isolation.

6. Textile and Paper Industries:

   • Installed in steam-heated dryers and autoclaves for safe and accurate pressure monitoring.

7. Pharmaceutical and Food Processing Plants:

   • Used in sanitary steam systems for clean, corrosion-resistant, and safe pressure gauge installation.

8. HVAC and Utility Systems:

   • Applied in steam heating lines to protect pressure instruments in building systems and industrial heating networks.

9. Instrumentation Panels:

   • Mounted on panels for centralized pressure monitoring, ensuring long gauge life and accurate readings in steam service.

10. Marine and Shipboard Systems:

    • Used in engine room steam systems to isolate gauges from direct heat in rugged environments.
