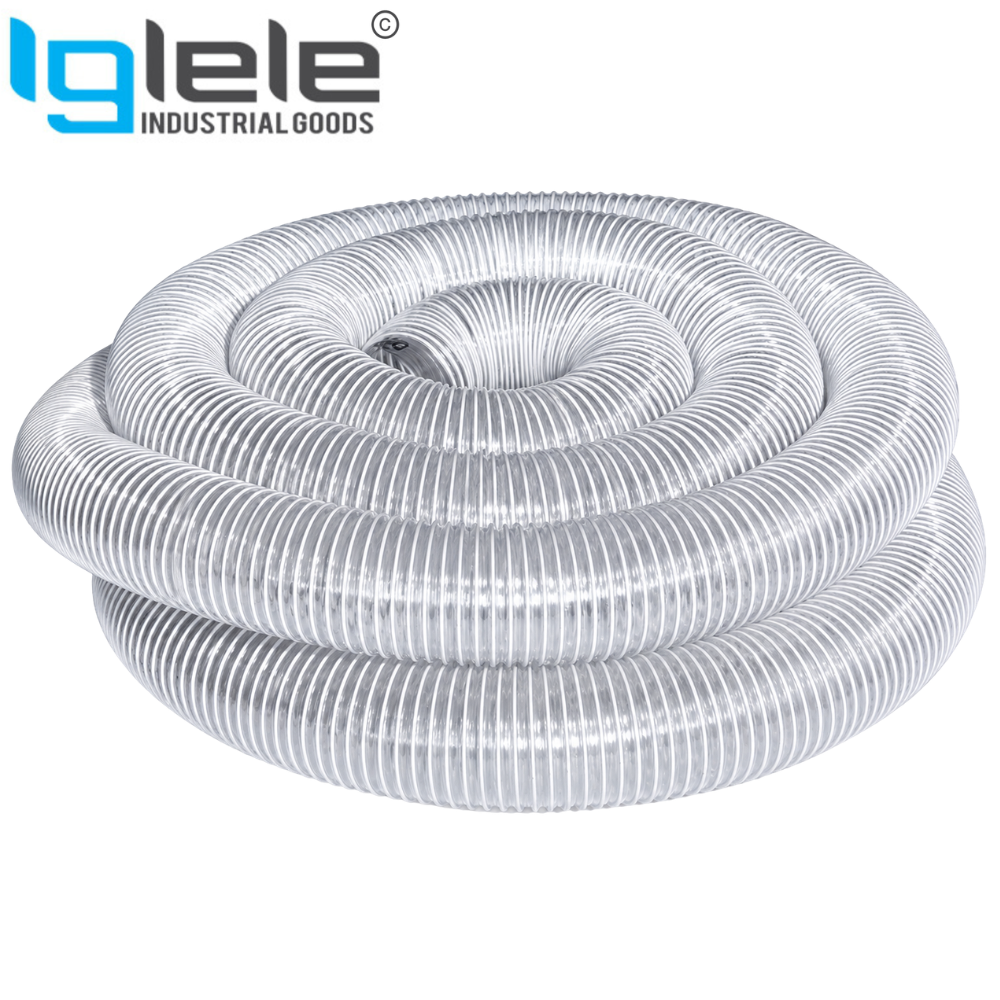

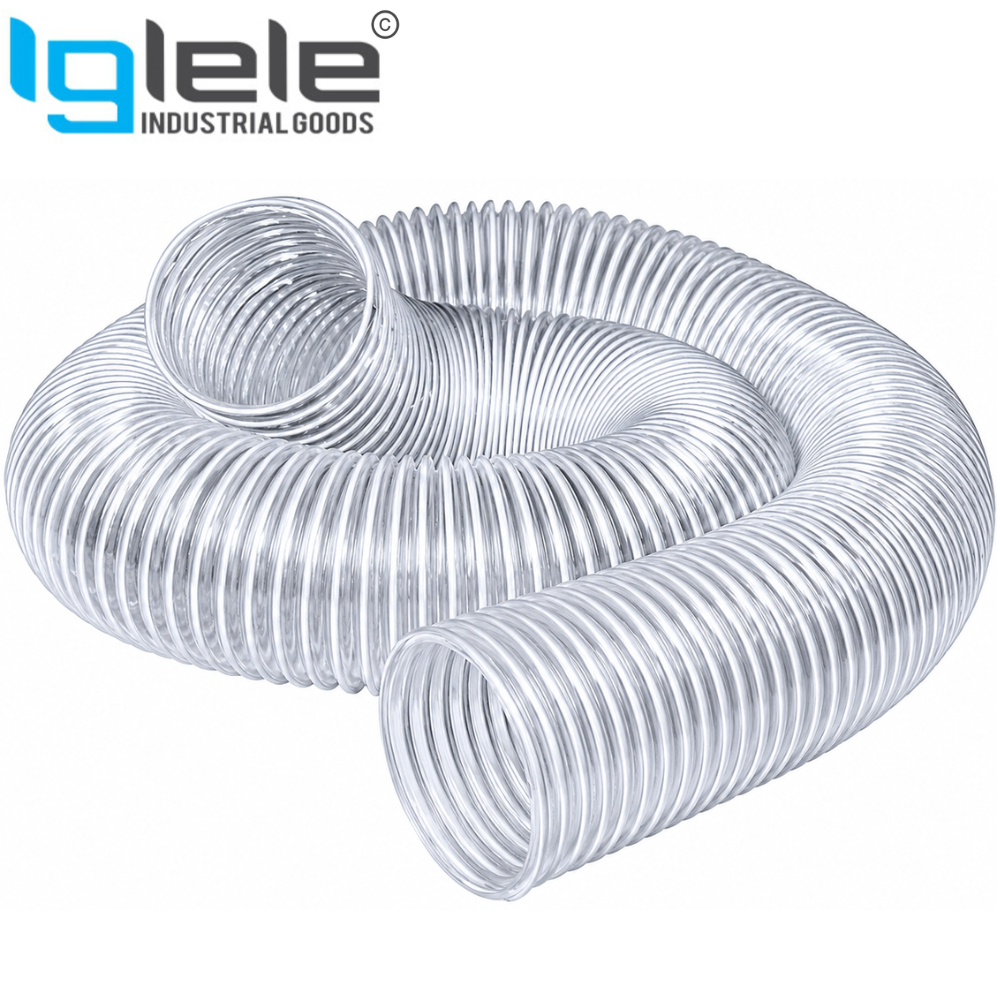

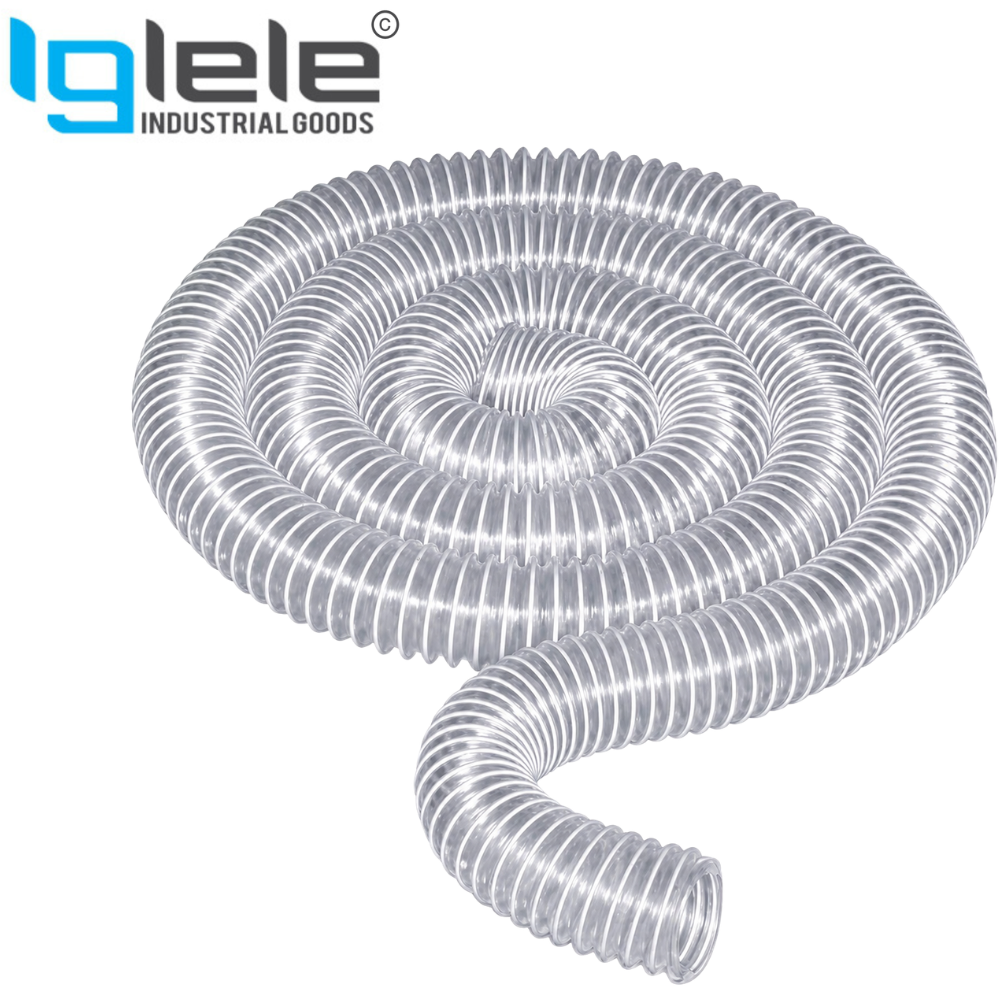

Transparent PVC Duct Hose – Heavy Duty Flexible Air, Dust & Fume Extraction Hose (Per Meter)
Product Overview
| Parameter |
Details |
| Product Name |
Transparent PVC Duct Hose |
| Type |
Heavy Duty Flexible Air, Dust & Fume Extraction Hose |
| Brand |
PHONEIX |
| Selling Unit |
Per Meter |
| Material |
Transparent Flexible PVC with Spring Steel Wire Reinforcement |
| Working Media |
Air, Dust, Fumes & Light Particles |
| Application |
Ventilation, Dust Collection, Fume Extraction & Air Handling |
Key Features
- Premium transparent flexible PVC construction
- High-tensile spring steel wire reinforcement
- Excellent flexibility and bend radius
- Transparent wall for easy visual flow inspection
- Smooth inner surface for efficient airflow
- Lightweight and easy to install
- Abrasion and moisture resistant
- Kink-resistant spiral construction
- Suitable for suction and ventilation systems
- Long service life with low maintenance
Size Chart
| Inner Diameter (ID) |
Approx. Inch |
Supply |
| 25 mm |
1″ |
Per Meter |
| 32 mm |
1-1/4″ |
Per Meter |
| 38 mm |
1-1/2″ |
Per Meter |
| 50 mm |
2″ |
Per Meter |
| 63 mm |
2-1/2″ |
Per Meter |
| 75 mm |
3″ |
Per Meter |
| 100 mm |
4″ |
Per Meter |
| 125 mm |
5″ |
Per Meter |
| 150 mm |
6″ |
Per Meter |
| 200 mm |
8″ |
Per Meter |
Material
| Component |
Material |
| Hose Wall |
Transparent Flexible PVC |
| Reinforcement |
High-Tensile Spring Steel Wire |
| Surface |
Smooth Transparent PVC Finish |
Where It Is Used / Applications
| Industry |
Application |
| Woodworking |
Dust Extraction |
| Manufacturing |
Air Ventilation |
| HVAC Systems |
Air Distribution |
| Welding Workshops |
Fume Extraction |
| Textile Industry |
Dust Collection |
| Packaging Plants |
Air Transfer |
| Food Processing |
Air Conveying* |
| Industrial Workshops |
Ventilation Systems |
| Construction |
Dust Removal |
*Ensure compatibility with your specific application and regulatory requirements.
How to Use
- Select the appropriate hose diameter.
- Connect the hose to the duct outlet or extraction equipment.
- Secure with suitable hose clamps or duct connectors.
- Avoid sharp bends and excessive compression.
- Operate within the recommended pressure and temperature range.
- Inspect periodically for wear or damage.
- Store in a clean, dry place when not in use.
Technical Details & Specifications
| Specification |
Details |
| Product Type |
Flexible PVC Duct Hose |
| Material |
Transparent Flexible PVC |
| Reinforcement |
Spring Steel Wire |
| Construction |
Spiral Reinforced Hose |
| Working Media |
Air, Dust & Light Fumes |
| Flexibility |
Excellent |
| Abrasion Resistance |
Good |
| Installation |
Clamp / Duct Connector |
Construction Details
| Layer |
Description |
| Inner Layer |
Smooth Transparent PVC |
| Reinforcement |
High-Tensile Spring Steel Wire |
| Outer Layer |
Transparent Abrasion-Resistant PVC Cover |
Available Standard Sizes
- 25 mm (1″)
- 32 mm (1-1/4″)
- 38 mm (1-1/2″)
- 50 mm (2″)
- 63 mm (2-1/2″)
- 75 mm (3″)
- 100 mm (4″)
- 125 mm (5″)
- 150 mm (6″)
- 200 mm (8″)
Custom diameters and lengths available on request.
Advantages
- Transparent wall for visual inspection
- Excellent flexibility
- Lightweight construction
- Strong spring steel reinforcement
- Smooth airflow performance
- Abrasion resistant
- Moisture resistant
- Easy installation
- Long service life
- Suitable for industrial ventilation systems
Temperature & Other Details
| Parameter |
Details |
| Working Temperature |
-10°C to +70°C |
| Working Media |
Air, Dust & Light Fumes |
| UV Resistance |
Moderate |
| Abrasion Resistance |
Good |
| Moisture Resistance |
Excellent |
| Chemical Resistance |
Moderate |
| Outdoor Use |
Limited (Recommended for covered installations) |
Package Includes
| Item |
Quantity |
| Transparent PVC Duct Hose |
Per Meter (As Ordered) |
Custom Manufacturing & Bulk Orders
IGLELE offers:
- Custom diameters
- Custom lengths
- OEM & private label manufacturing
- Custom colours
- Bulk industrial supply
- Project-based manufacturing
- Wholesale and export orders
Contact IGLELE for Bulk & Custom Orders
IGLELE E Commerce LLP
Website: IGLELE.com
Phone: +91 9800150888
Email: sales@iglele.com
Contact IGLELE for bulk pricing, OEM manufacturing, custom PVC duct hose sizes, ventilation systems, dust extraction solutions, and industrial air handling applications.
