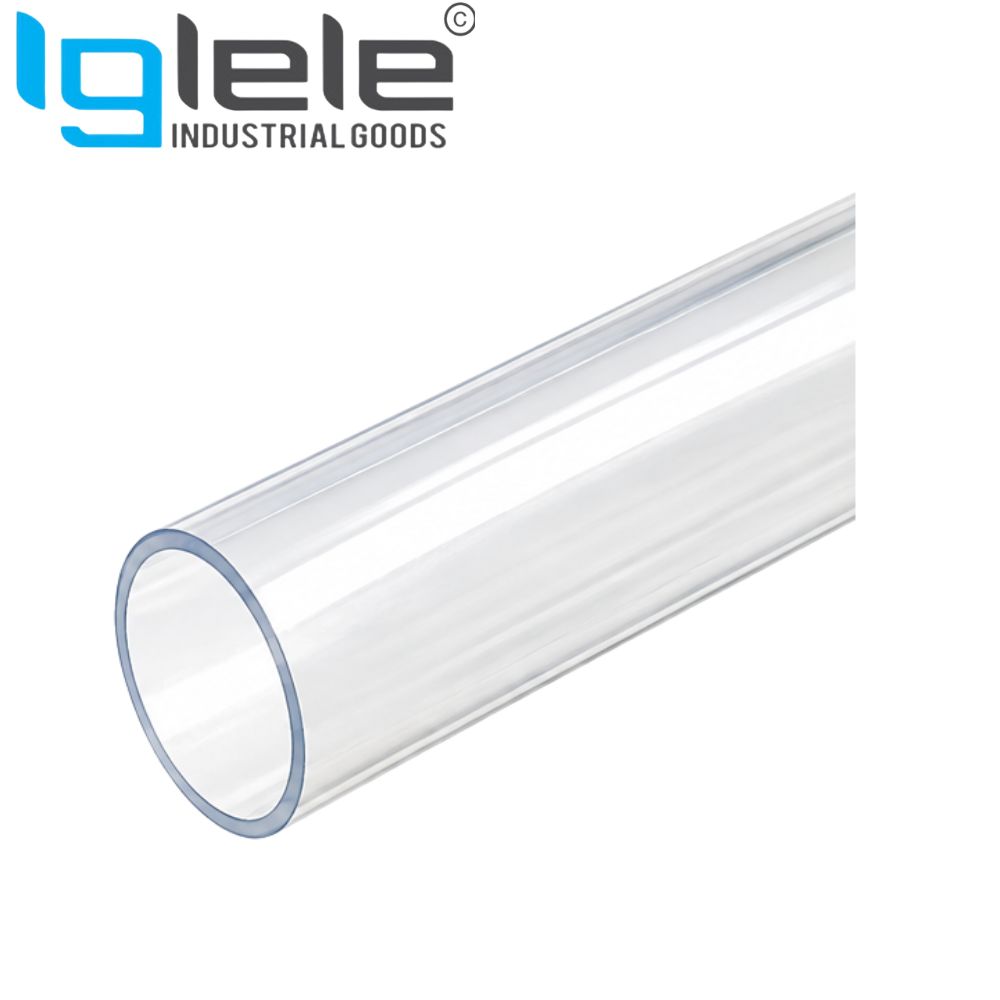

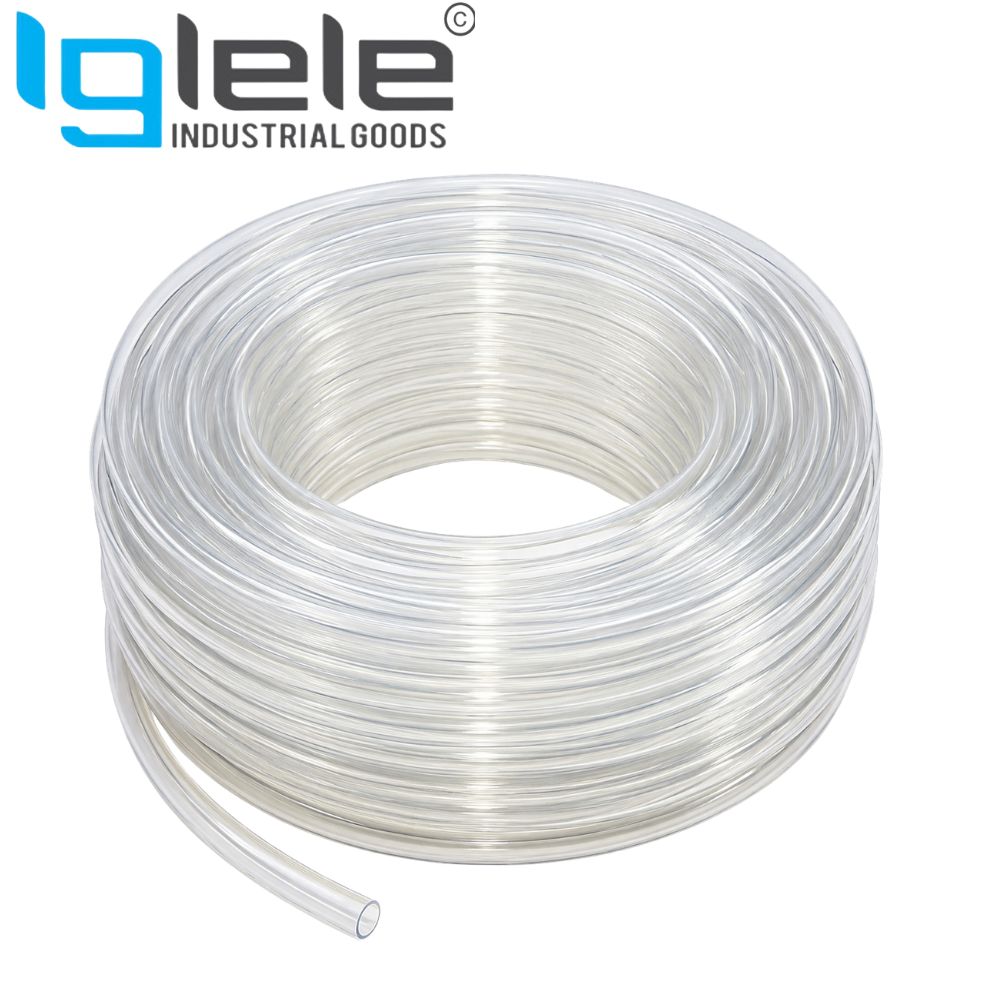

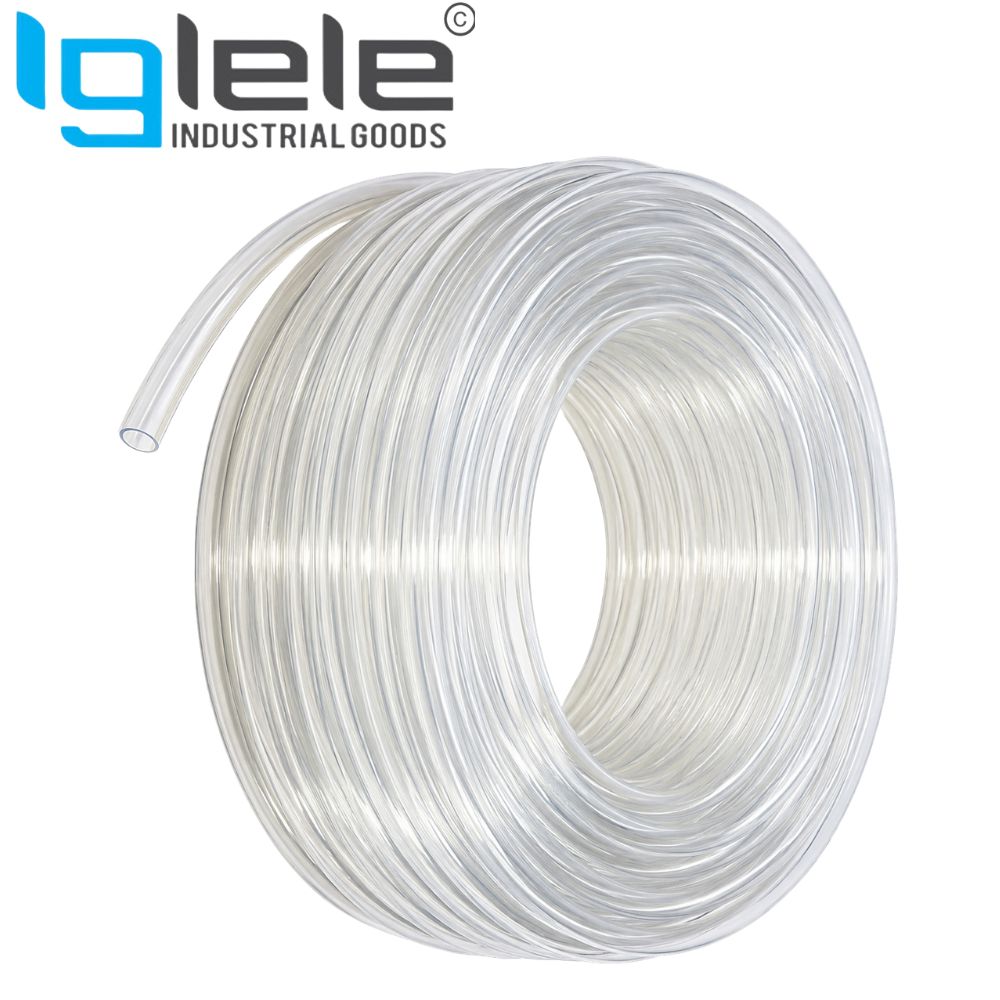

Transparent PVC Level Tube – Flexible Water Level Indicator Tube
Key Features :
- Clear transparent PVC construction
- Flexible and lightweight
- Easy visual monitoring of liquid level
- Smooth inner surface for accurate flow
- Good resistance to water and mild chemicals
- Kink-resistant design
- Easy to cut and install
- Durable and low maintenance
- Suitable for continuous liquid-level monitoring
- Long service life
Size Chart
| ID × OD |
Approx. Inch |
Supply |
| 4 × 6 mm |
1/8″ |
Per Meter |
| 6 × 8 mm |
1/4″ |
Per Meter |
| 8 × 10 mm |
5/16″ |
Per Meter |
| 10 × 12 mm |
3/8″ |
Per Meter |
| 12 × 15 mm |
1/2″ |
Per Meter |
| 16 × 20 mm |
5/8″ |
Per Meter |
| 19 × 24 mm |
3/4″ |
Per Meter |
| 25 × 30 mm |
1″ |
Per Meter |
Applications
| Industry |
Application |
| Water Tanks |
Water Level Indication |
| Industrial Plants |
Tank Level Monitoring |
| Boilers |
Liquid Level Observation |
| Machinery |
Coolant Level Monitoring |
| Chemical Plants |
Fluid Level Checking |
| Agriculture |
Water Storage Tanks |
| Laboratories |
Liquid Level Observation |
| General Industry |
Fluid Transfer & Level Monitoring |
Material
| Component |
Material |
| Tube Body |
Flexible Transparent PVC |
| Inner Surface |
Smooth PVC Bore |
| Outer Surface |
Clear PVC |
Where It Is Used / How to Use
- Select the required tube diameter.
- Cut the tube to the required length.
- Connect both ends securely to the tank or level-indicator fittings.
- Ensure the connections are leak-free.
- Keep the tube clearly visible for easy liquid-level observation.
- Replace the tube if it becomes cloudy, cracked, or damaged.
Technical Details & Specifications
| Specification |
Details |
| Product Type |
Transparent PVC Level Tube |
| Material |
Flexible PVC |
| Construction |
Clear Single-Layer Tube |
| Colour |
Transparent |
| Working Media |
Water & Compatible Liquids |
| Flexibility |
Excellent |
| Connection |
Hose Fittings / Clamps |
| Supply |
Per Meter |
Construction Details
| Part |
Description |
| Tube Wall |
Flexible Transparent PVC |
| Inner Bore |
Smooth for Clear Fluid Flow |
| Outer Surface |
Clear & Flexible PVC |
Available Standard Sizes
- 4 × 6 mm
- 6 × 8 mm
- 8 × 10 mm
- 10 × 12 mm
- 12 × 15 mm
- 16 × 20 mm
- 19 × 24 mm
- 25 × 30 mm
Custom sizes and lengths available on request.
Advantages
- Clear visibility of liquid level
- Flexible and easy to install
- Lightweight
- Good water resistance
- Good chemical resistance
- Smooth internal surface
- Easy to cut and connect
- Low maintenance
- Long service life
- Cost-effective level monitoring solution
Temperature & Other Details
| Parameter |
Details |
| Working Temperature |
-10°C to +60°C |
| Working Media |
Water & Compatible Liquids |
| Transparency |
Excellent |
| Flexibility |
Excellent |
| Chemical Resistance |
Good |
| Abrasion Resistance |
Good |
| UV Resistance |
Moderate |
| Indoor / Outdoor Use |
Suitable |
Package Includes
| Item |
Quantity |
| Transparent PVC Level Tube |
Per Meter (As Ordered) |
Custom Manufacturing & Bulk Orders
IGLELE offers:
- Custom tube diameters
- Custom lengths
- Custom wall thickness
- OEM & private-label manufacturing
- Bulk industrial supply
- Wholesale & export orders
- Custom liquid-level monitoring solutions
