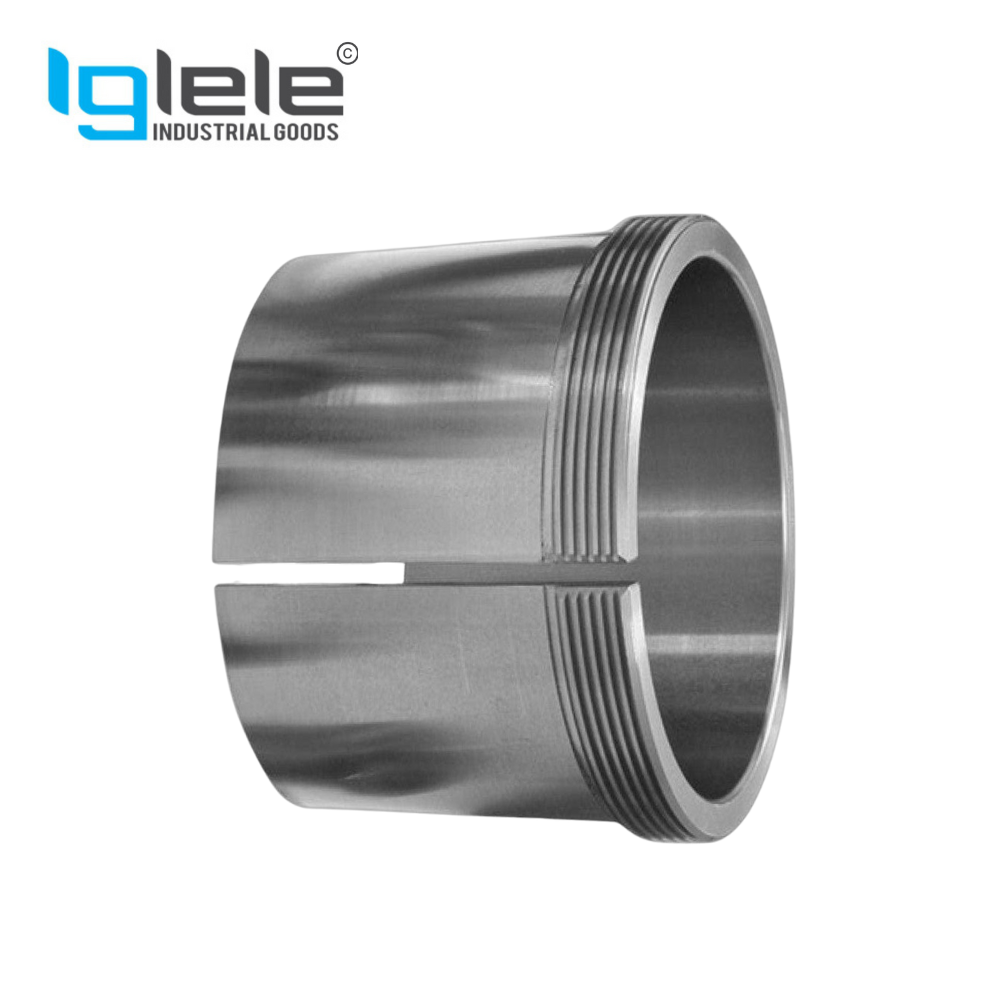

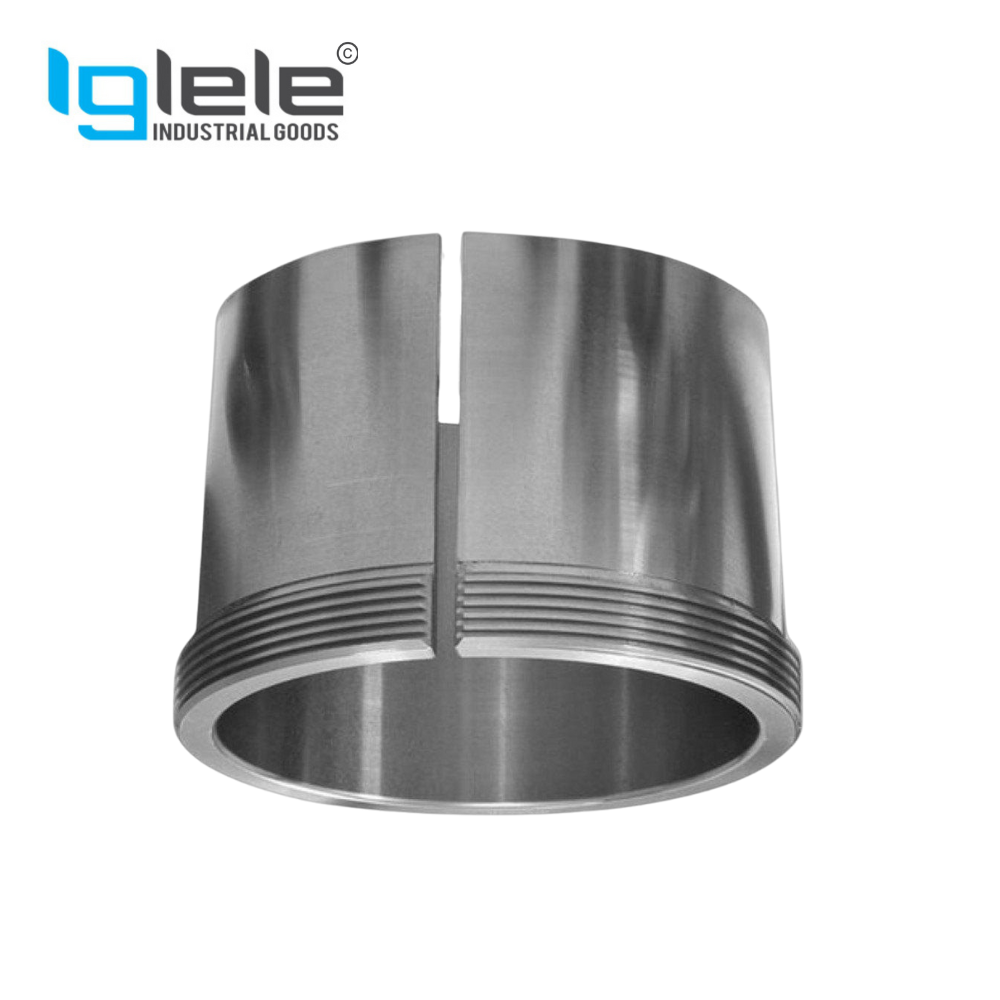

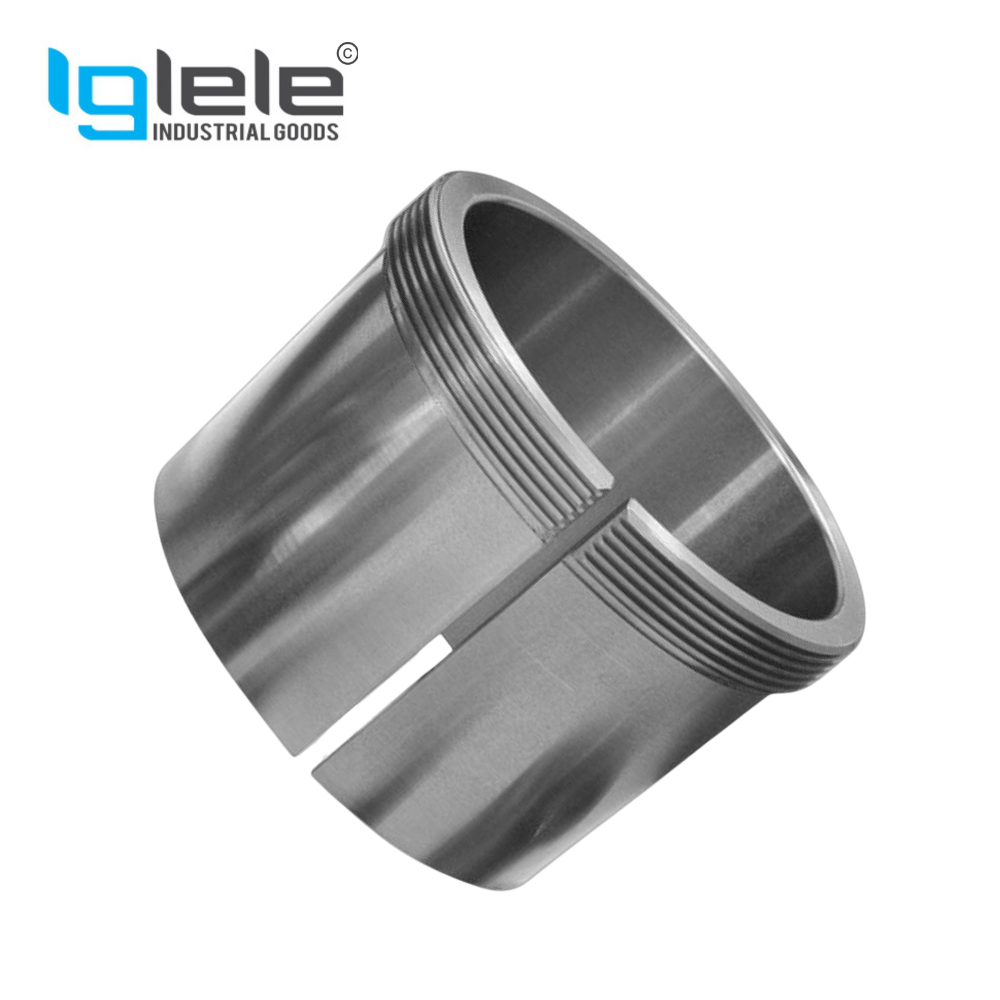

Withdrawal Sleeves AH 2300 Series

Features of Withdrawal Sleeves (AH 2300 Series):

• Tapered Design (1:12 Ratio):

  • Allows easy and secure mounting of tapered bore bearings onto stepped shafts.

• High-Grade Steel Construction:

  • Manufactured from strong alloy or carbon steel for high load capacity and long service life.

• Internal Threading:

  • Includes internal threads at the small end to enable easy dismounting with a withdrawal nut or hydraulic tool.

• Accurate Shaft Fitment:

  • Provides a precise fit between the shaft and bearing, ensuring proper alignment and operational reliability.

• Corrosion-Resistant Finish:

  • Usually coated or treated to protect against rust and wear in harsh industrial environments.

• Standardized Dimensions:

  • Complies with ISO and DIN standards (e.g., DIN 5416), making them compatible with a wide range of bearings and machines.

• Easy Maintenance & Replacement:

  • Designed for quick assembly and disassembly, reducing downtime during maintenance.

Applications And Uses :

• Mounting Tapered Bore Bearings on Stepped Shafts:

  • Used to mount and dismount spherical roller bearings on shafts with a fixed shoulder.

• Electric Motors & Generators:

  • Ensures secure and aligned installation of bearings on motor shafts for smooth operation.

• Gearboxes & Industrial Transmissions:

  • Facilitates easy installation and removal of bearings in compact, high-load transmission systems.

• Pumps & Compressors:

  • Maintains precise bearing placement in rotating equipment exposed to axial and radial loads.

• Wind Turbines & Energy Equipment:

  • Ideal for dismounting large bearings under heavy stress and vibration in renewable energy systems.

• Steel Mills & Rolling Equipment:

  • Used in heavy-duty bearing assemblies requiring frequent maintenance and secure shaft mounting.

• Mining & Construction Machinery:

  • Withstands extreme working conditions and supports high-load rotating components.

• Textile, Paper & Packaging Machinery:

  • Ensures fast and reliable dismounting during scheduled bearing maintenance.

We specialise in supplying a comprehensive range of Iglele Withdrawal Sleeves AH 2300 Series    Wireguard tailored to diverse industrial needs. Withdrawal Sleeves AH 2300 Series   Wireguard  Engineered for durability and performance in your industrial applications.
