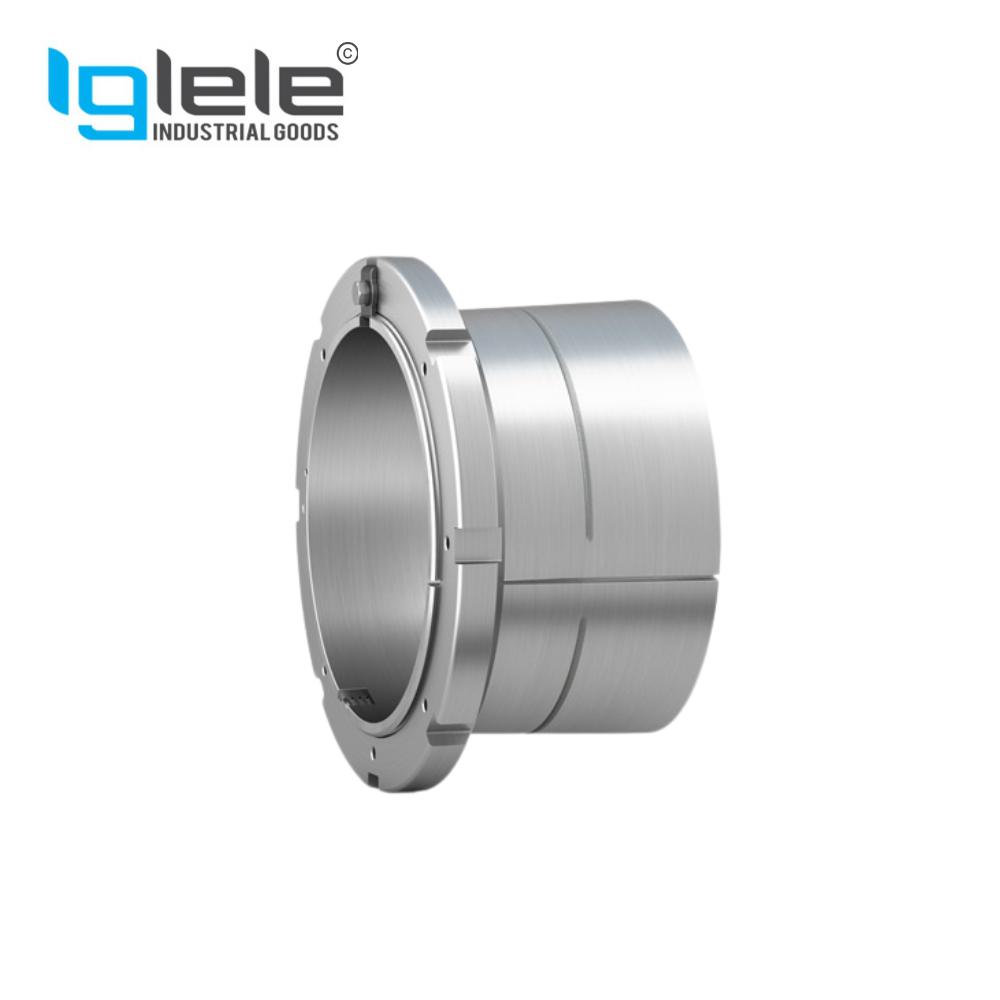

Withdrawal Sleeves AH 24100 Series

Features of Withdrawal Sleeves (AH 24100 Series):

• Tapered Design (1:30):

  • Specifically designed for mounting and dismounting large tapered bore bearings on stepped shafts.

• Heavy-Duty Steel Construction:

  • Made from premium-grade alloy or carbon steel to handle extreme loads and tough industrial conditions.

• Internal Threaded End:

  • Facilitates easy withdrawal using a withdrawal nut or hydraulic dismounting equipment.

• Precision Machined:

  • Manufactured with tight tolerances to ensure accurate fit and perfect shaft–bearing alignment.

• Corrosion-Resistant Surface:

  • Coated or treated for protection against rust, wear, and harsh environments.

• Standard Compliant:

  • Meets ISO and DIN standards (e.g., DIN 5416) for universal compatibility.

• Hydraulic Dismounting Ready:

  • Supports the use of hydraulic tools for quick and safe bearing removal.

• Ideal for Large Bearings:

  • Suitable for large shaft diameters and heavy-duty bearing applications.

• Reduces Downtime:

  • Allows fast and efficient disassembly without damage to the shaft or bearing.

Applications And Uses :

• Mounting & Dismounting Large Bearings:

  • Used for securely fitting and removing large tapered bore bearings on stepped shafts.

• Wind Turbines:

  • Applied in main shafts and gearbox assemblies for reliable bearing installation and removal.

• Steel & Rolling Mills:

  • Handles heavy loads and ensures quick maintenance of bearings in metal processing equipment.

• Mining & Earthmoving Machinery:

  • Facilitates servicing of large bearing assemblies under rugged working conditions.

• Marine & Offshore Equipment:

  • Used in propulsion systems, winches, and deck machinery for precise bearing positioning.

• Power Generation Plants:

  • Applied in turbines, generators, and other large rotating machinery.

• Cement Plants & Crushers:

  • Ensures secure mounting and easy disassembly of bearings in heavy-duty crushing and grinding machinery.

We specialise in supplying a comprehensive range of Iglele Withdrawal Sleeves AH 24100 Series   Wireguard tailored to diverse industrial needs. Withdrawal Sleeves AH 24100 Series    Wireguard  Engineered for durability and performance in your industrial applications.
