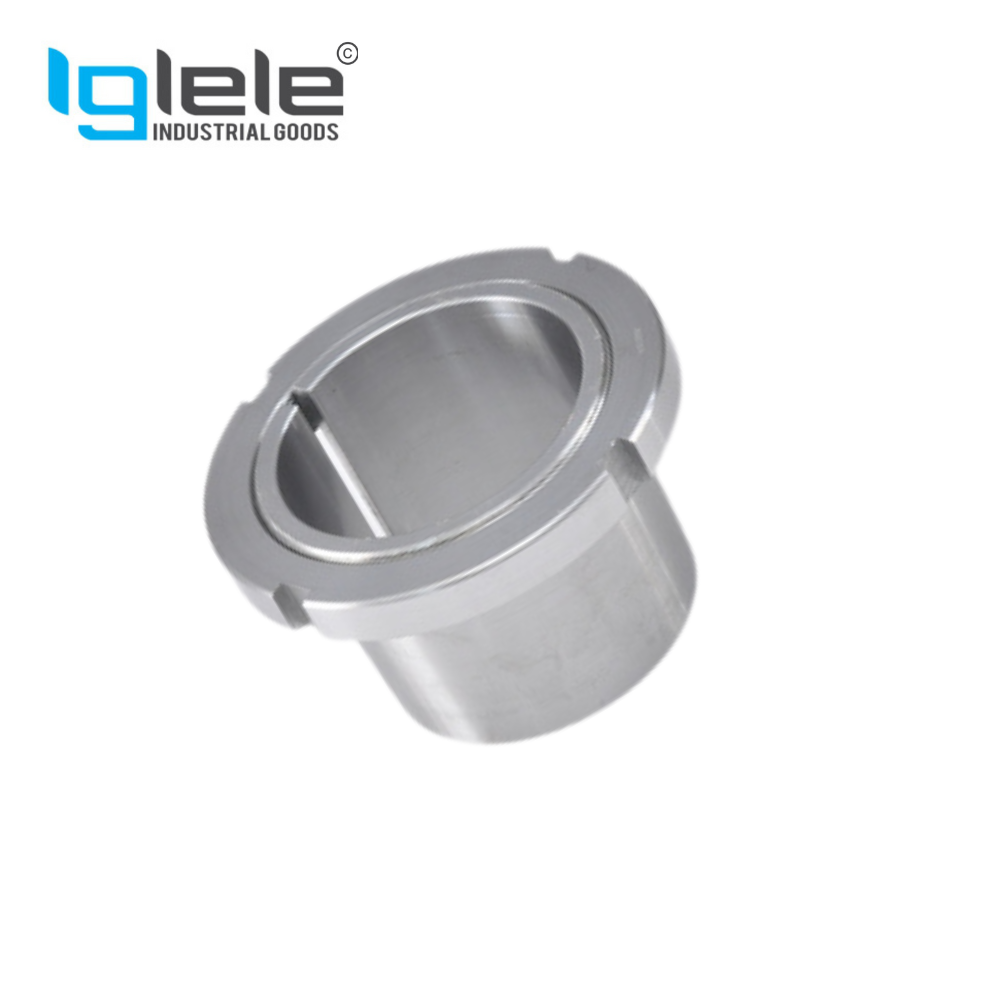

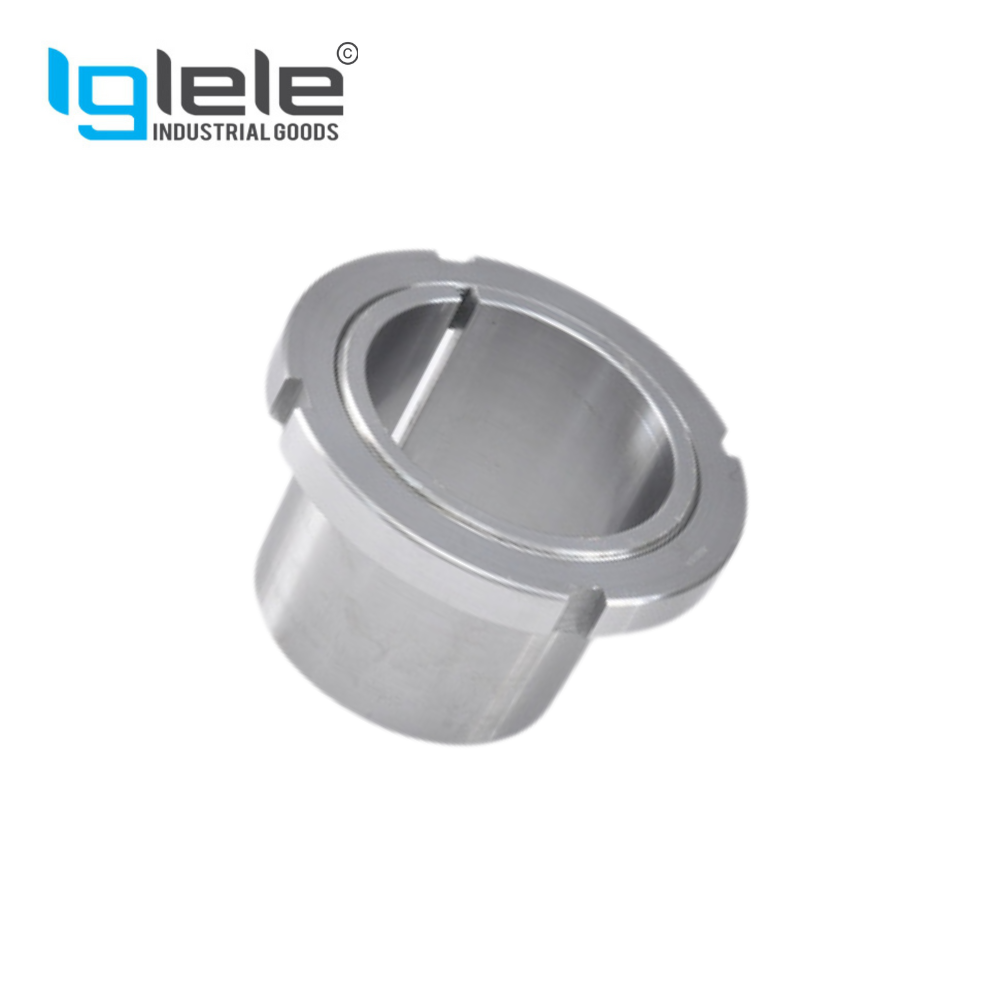

Withdrawal Sleeves AH 3200 Series

Features of Withdrawal Sleeves (AH 3200 Series):

• Tapered Design (1:12 Ratio):

  • Specially designed to mount and dismount bearings with a tapered bore on stepped shafts.

• High-Quality Steel Construction:

  • Manufactured from strong alloy or carbon steel for excellent load-bearing capacity and long service life.

• Internal Threaded End:

  • Allows easy removal using a withdrawal nut or hydraulic tool for efficient maintenance.

• Precision Machining:

  • Ensures an accurate fit between the bearing and shaft, improving operational stability.

• Corrosion-Resistant Surface:

  • Typically treated or coated to prevent rust and wear in demanding industrial environments.

• Standardized Dimensions:

  • Produced in accordance with ISO and DIN standards (e.g., DIN 5416), ensuring global compatibility.

• Heavy-Duty Performance:

  • Designed for use in high-load, high-speed, and high-vibration machinery applications.

Applications And Uses :

• Mounting & Dismounting Tapered Bore Bearings:

  • Used for installing and removing bearings on stepped shafts without damaging the shaft or bearing.

• Electric Motors & Generators:

  • Provides accurate bearing positioning and easy disassembly during maintenance.

• Gearboxes & Transmission Systems:

  • Facilitates quick bearing replacement in high-load and compact mechanical assemblies.

• Pumps & Compressors:

  • Maintains secure bearing fit in rotating equipment subjected to continuous operation and vibration.

• Wind Turbines & Renewable Energy Equipment:

  • Enables safe removal of large bearings in high-load, high-vibration environments.

• Steel Mills & Heavy Rolling Equipment:

  • Handles extreme loads and supports frequent bearing changes in industrial machinery.

• Mining & Construction Equipment:

  • Withstands shock loads and abrasive environments while ensuring reliable bearing mounting.

• Textile, Paper & Printing Machinery:

  • Supports precise alignment and quick bearing replacement to minimize downtime.

• Material Handling & Conveyor Systems:

  • Used for secure mounting of roller and pulley bearings in continuous operations.

• Industrial Fans & Blowers:

  • Ensures stable bearing positioning and facilitates easy maintenance.
