-30%

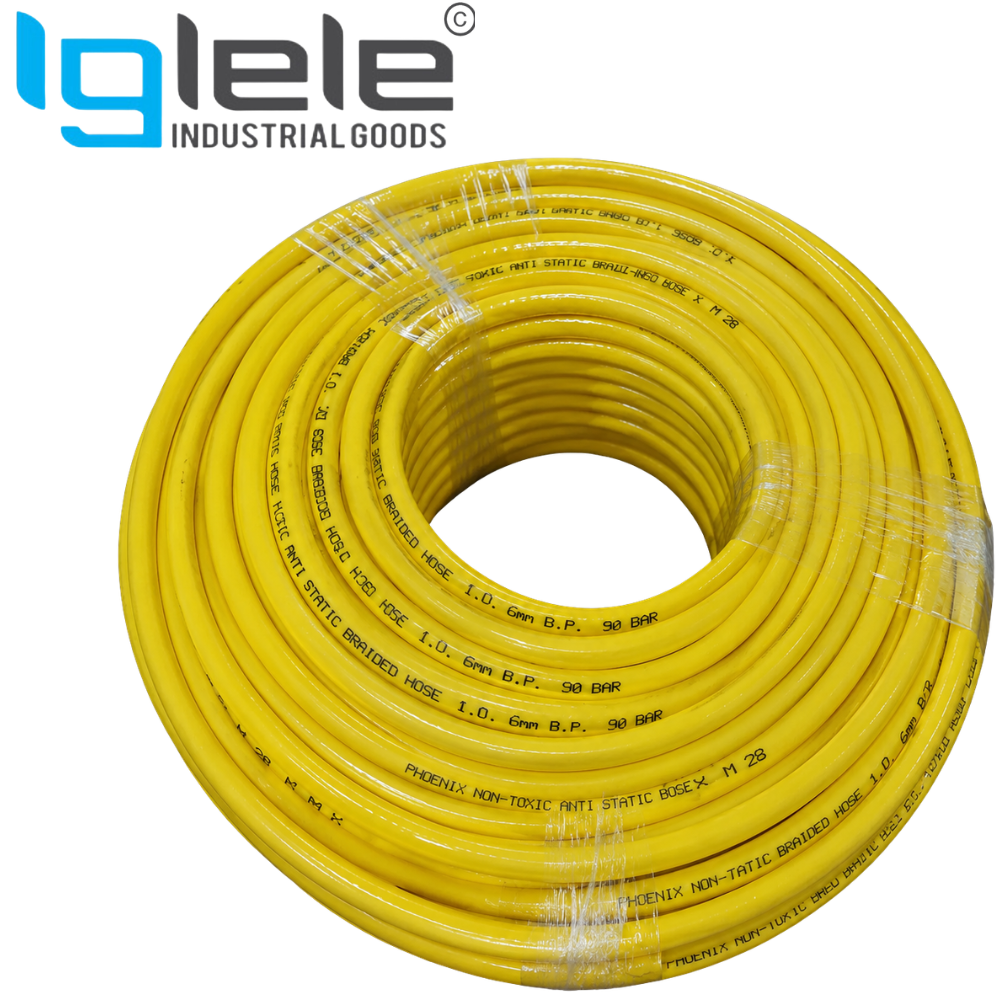

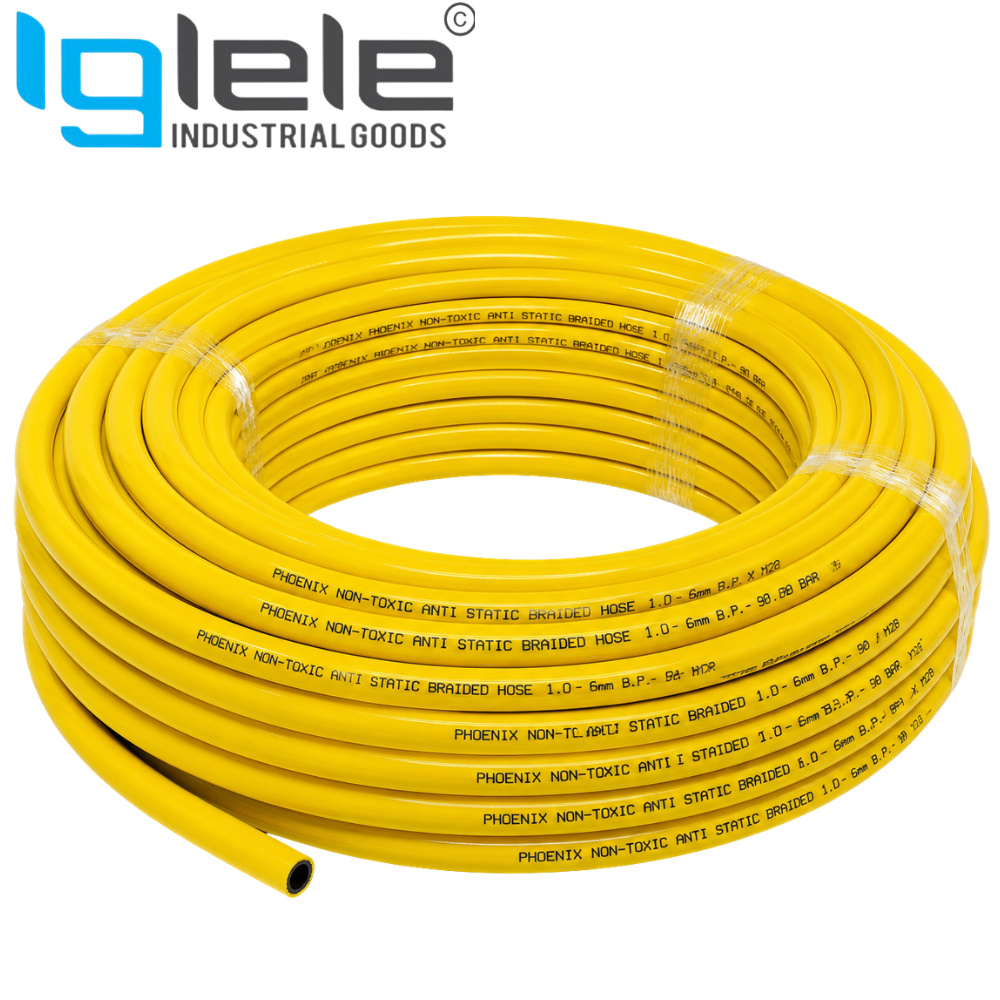

Yellow PVC Braided Hose – Flexible Reinforced Water & Air Hose (Per Meter)
Yellow PVC Braided Hose – Flexible Reinforced Water & Air Hose (Per Meter) - Image 2

Yellow PVC Braided Hose – Flexible Reinforced Water & Air Hose (Per Meter)

Phoneix
Specification Details
Brand PHONEIX
Product Code / SKU CBYEL
Availability Ready Stock – Dispatch within 24–48 Hours
Material Premium Flexible PVC with High-Tensile Polyester Braided Reinforcement
Application HVAC Ventilation, Air Conditioning, Exhaust Systems, Fresh Air Supply, Fume Extraction & Industrial Air Ducting
SKU: CBYEL
Availability:

100 in stock

₹84.10 ₹58.87

Yellow PVC Braided Hose – Flexible Reinforced Water & Air Hose (Per Meter)

The IGLELE Yellow PVC Braided Hose is a premium-quality reinforced PVC hose designed for reliable water, air, pneumatic, and industrial fluid transfer applications. Manufactured using high-grade transparent PVC reinforced with high tensile polyester yarn braiding, this hose offers excellent pressure resistance, flexibility, durability, and long service life.

The smooth inner bore ensures maximum flow with minimum pressure loss, while the reinforced braided construction provides superior burst strength and resistance against kinking, abrasion, and weather conditions. Lightweight and easy to handle, it is ideal for domestic, agricultural, commercial, and industrial applications.

Key Features

✔ Premium Virgin PVC Construction

✔ High Tensile Polyester Yarn Braided Reinforcement

✔ Heavy Duty Pressure Hose

✔ Flexible & Lightweight

✔ Excellent Burst Strength

✔ Smooth Inner Surface for Better Flow

✔ Kink Resistant Design

✔ Abrasion Resistant

✔ Weather & UV Resistant

✔ Corrosion & Chemical Resistant

✔ Suitable for Water & Air Applications

✔ Long Service Life

✔ Manufactured to Industrial Standards

Yellow PVC Braided Hose – Standard Size Chart

The following table lists the standard sizes available for the IGLELE Yellow PVC Braided Hose. Custom sizes and lengths are available on request.

Item Code Color ID (MM) OD (MM) Size (Inch) Working Pressure (Bar) Burst Pressure (Bar) Standard Length (Mtr)
CB6Y Yellow 6.0 12.3 1/4″ 30 90 100
CB10Y Yellow 9.5 15.5 3/8″ 30 90 100

Custom sizes and coil lengths are available on request.

Applications

  • Water Transfer
  • Air Compressor Lines
  • Pneumatic Equipment
  • Agriculture Irrigation
  • Gardening
  • Car Washing
  • Construction Sites
  • Industrial Water Supply
  • Factory Air Lines
  • Workshop Applications
  • Chemical Transfer (Mild Chemicals)
  • General Utility Water Supply
  • OEM Equipment
  • Domestic Water Delivery
  • Machine Cooling Water Lines

Technical Specifications

Parameter Specification
Brand IGLELE
Product Name Yellow PVC Braided Hose
Construction Flexible PVC Hose with Polyester Yarn Braiding
Reinforcement High Tensile Polyester Yarn
Inner Layer Virgin PVC
Outer Layer Yellow Transparent PVC
Temperature Range -10°C to +60°C
Working Pressure 7–30 Bar (Depending on Size)
Burst Pressure 21–90 Bar (Depending on Size)
Standard Length 30 Meter / 50 Meter / 100 Meter
Color Yellow Transparent
Shape Round Flexible Hose
Flexibility Excellent
Abrasion Resistance Excellent
Weather Resistance Excellent
UV Resistance Good
Chemical Resistance Suitable for Mild Chemicals
Operating Medium Water, Air & Non-Corrosive Fluids
Country of Supply India

Construction Details

Layer Material Purpose
Outer Layer Transparent Yellow PVC Abrasion, Weather & UV Protection
Reinforcement High Tensile Polyester Yarn Braiding High Pressure Strength & Burst Resistance
Inner Layer Virgin PVC Smooth Water & Air Flow

Available Standard Sizes

Nominal Size Inside Diameter
1/4 Inch 6.3 mm
5/16 Inch 8 mm
3/8 Inch 9.5 mm
1/2 Inch 12 mm
5/8 Inch 15.5 mm
3/4 Inch 19 mm
1 Inch 25 mm
1-1/4 Inch 31.5 mm
1-1/2 Inch 38 mm
2 Inch 50 mm
2-1/2 Inch 63 mm

Custom diameters and lengths are available on request.

Advantages

  • High Pressure Performance
  • Excellent Flexibility
  • Lightweight Design
  • Smooth Flow with Low Pressure Loss
  • Strong Polyester Reinforcement
  • Kink Resistant
  • Abrasion Resistant
  • UV & Weather Resistant
  • Easy Handling & Installation
  • Long Service Life
  • Low Maintenance
  • Cost-Effective Industrial Hose Solution

Package Includes

    • 1 × Yellow PVC Braided Hose
    • Standard Length: 30 / 50 / 100 Meter Coil (Depending on Size)
    • Ready for Immediate Use

Why Choose IGLELE?

  • Premium Industrial Quality Products
  • Trusted Industrial Supplier Across India
  • Competitive Pricing
  • Fast Dispatch
  • Bulk Supply Available
  • OEM Manufacturing Support
  • Reliable After-Sales Service
  • Custom Manufacturing Available

Custom Manufacturing & Bulk Orders

IGLELE supplies Yellow PVC Braided Hoses in standard as well as custom-made diameters, lengths, colors, and pressure ratings for OEM manufacturers, industries, agricultural applications, infrastructure projects, distributors, and exporters.

We welcome inquiries for:

✔ Custom Diameters

✔ Custom Lengths

✔ Heavy Duty Pressure Hose

✔ OEM Branding

✔ Bulk Supply

✔ Industrial Projects

✔ Dealer & Distributor Enquiries

Contact IGLELE for Bulk & Custom Orders

Email: sales@iglele.com

Phone: +91 9800150888
