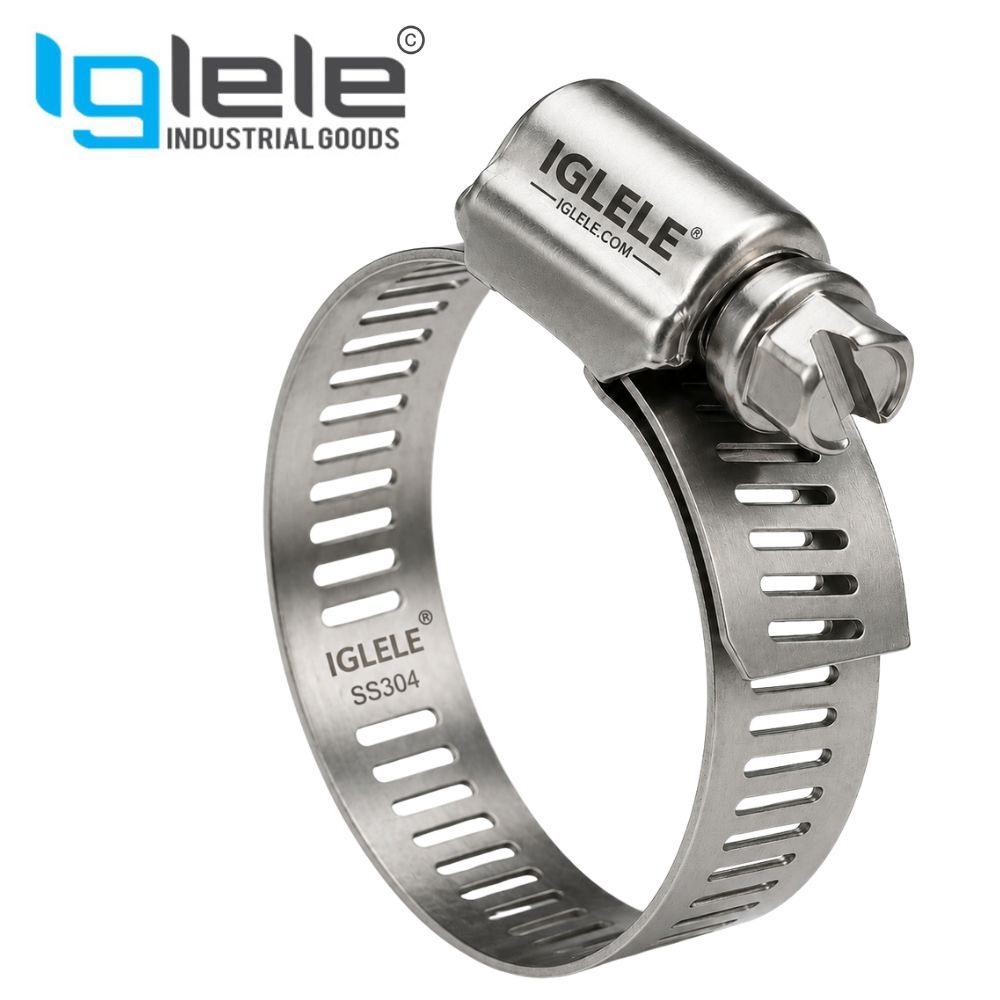

IGLELE Jolly SS304 Worm Drive Hose Clip
| Brand | Make in India |
|---|---|
| Product Code | SSWDHC |
| Availability | 48 Hrs |
| TYPE | BOX PACKED |
| Material | HOSE CLIPS |
| CLASS | Heavy Duty |
100 in stock
₹31.01 ₹18.60
IGLELE Jolly SS304 Worm Drive Hose Clip
The IGLELE Jolly SS304 Worm Drive Hose Clip : is a premium quality heavy-duty hose clamp designed for securely fastening hoses, pipes, ducts and flexible tubing under low, medium and high pressure applications. Manufactured using corrosion-resistant Stainless Steel 304, these hose clips provide excellent clamping force, long service life and vibration resistance for industrial as well as commercial applications.
IGLELE supplies one of India’s largest ranges of worm drive hose clips in standard, heavy duty and customized sizes suitable for almost every hose diameter. Our hose clips are widely used across chemical plants, food processing industries, pharmaceuticals, OEM machinery, agriculture, automotive, marine, construction equipment, hydraulic systems, pneumatic systems, water treatment plants and general industrial maintenance.
Product Features
- Manufactured from Premium Stainless Steel 304.
- High corrosion and rust resistance.
- Heavy duty worm gear mechanism.
- High tightening torque.
- Excellent vibration resistance.
- Smooth rolled band edges to protect hoses.
- Suitable for rubber, silicone, PVC, PU, hydraulic and industrial hoses.
- Easy installation using screwdriver, nut driver or socket wrench.
- Reusable and maintenance friendly.
- Available in Standard and Heavy Duty variants.
- Suitable for indoor and outdoor installations.
Technical Specifications
| Size as per IS 4762 | Jolly Size | Size as per BS 5315 | OD Min (mm) | OD Max (mm) | OD Min (Inch) | OD Max (Inch) |
|---|---|---|---|---|---|---|
| 12 | 0 | 12 | 9 | 12 | 3/8″ | 1/2″ |
| 16 | 00M | 16 | 11 | 16 | 1/2″ | 5/8″ |
| 20 | 0 | 20 | 13 | 20 | 1/2″ | 3/4″ |
| 22 | 0 | 22 | 16 | 22 | 5/8″ | 7/8″ |
| 25 | 100S | 25 | 18 | 25 | 3/4″ | 1″ |
| 28 | 0X | 28 | 20 | 28 | 3/4″ | 1-1/8″ |
| 30 | 1A | 30 | 22 | 30 | 7/8″ | 1-1/8″ |
| 35 | 137S | 35 | 25 | 35 | 1″ | 1-3/8″ |
| 38 | 1 | 38 | 30 | 38 | 1-1/8″ | 1-1/2″ |
| 40 | 1X | 40 | 30 | 40 | 1-1/8″ | 1-5/8″ |
| 45 | 45A | 45 | 35 | 45 | 1-1/4″ | 1-3/4″ |
| 50 | 2A | 50 | 38 | 50 | 1-1/2″ | 1-7/8″ |
| 55 | 2 | 55 | 42 | 55 | 1-3/4″ | 2-1/8″ |
| 60 | 2X | 60 | 45 | 60 | 1-3/8″ | 2-3/8″ |
| 70 | 3 | 70 | 50 | 70 | 2″ | 2-3/4″ |
| 75 | 75A | 75 | 55 | 75 | 2-1/4″ | 3″ |
| 80 | 3X | 80 | 60 | 80 | 2-3/8″ | 3-1/8″ |
| 90 | 4 | 90 | 70 | 90 | 2-3/4″ | 3-1/2″ |
| 100 | 4X | 100 | 80 | 100 | 3-1/4″ | 4″ |
| 110J | 110A | 110 | 90 | 110 | 3-1/2″ | 4-3/8″ |
| 115 | 5 | 115 | 95 | 115 | 3-3/4″ | 4-5/8″ |
| 120 | 5X | 120 | 100 | 120 | 3-3/4″ | 4-1/2″ |
| 130 | 6 | 130 | 110 | 130 | 4-3/8″ | 5-1/4″ |
| 145 | 575S | 145 | 125 | 145 | 5″ | 5-3/4″ |
| 160 | 6X | 160 | 140 | 160 | 5-5/8″ | 6-3/8″ |
| – | 7″ | – | 160 | 178 | 6″ | 7″ |
| – | 8″ | – | 183 | 203 | 7″ | 8″ |
| – | 9″ | – | 209 | 229 | 8″ | 9″ |
| – | 10″ | – | 234 | 254 | 9″ | 10″ |
| – | 11 | – | 260 | 280 | 10″ | 11″ |
| – | 12 | – | 285 | 305 | 11″ | 12″ |
| – | 13 | – | 310 | 330 | 12″ | 13″ |
| – | 14 | – | 336 | 356 | 13″ | 14″ |
| – | 15 | – | 361 | 381 | 14″ | 15″ |
| – | 16 | – | 386 | 406 | 15″ | 16″ |
| – | 18 | – | 437 | 457 | 17″ | 18″ |
| – | 22 | – | 539 | 559 | 21-1/4″ | 22″ |
ParameterSpecificationProduct Name IGLELE Jolly SS304 Worm Drive Hose Clip Stainless Steel 304Type Worm Drive Hose ClampF inishBright Stainless Steel FinishBand TypePerforated Worm DriveCorrosion ResistanceExcellentOperating Temperature-40°C to +200°C (Application Dependent)InstallationScrewdriver / Nut Driver / SocketApplicationsIndustrial, Automotive, Agriculture, Marine, Chemical, OEM
Applications
- Hydraulic Hose Assemblies
- Pneumatic Air Lines
- Water Pipelines
- Industrial Rubber Hose
- PVC Hose
- Silicone Hose
- Fuel Lines
- Coolant Hose
- Chemical Transfer Hose
- Food Grade Hose
- Irrigation Systems
- Ducting Connections
- Air Compressors
- Marine Equipment
- Construction Machinery
- Mining Equipment
- OEM Machinery Manufacturing
Advantages of IGLELE Jolly SS304 Worm Drive Hose Clip
- Superior rust resistance compared to carbon steel.
- Long service life.
- Suitable for humid and outdoor environments.
- Strong clamping force.
- Low maintenance.
- Excellent appearance.
- Ideal for food and pharmaceutical industries.
How to Use
- Select the correct hose clip size according to the outside diameter of the hose.
- Slide the hose clip over the hose before connecting the hose onto the fitting.
- Position the hose clip directly over the barb or pipe connection.
- Tighten the worm drive screw using a screwdriver or socket wrench until the hose is securely clamped.
- Do not over-tighten to avoid damage to the hose.
- After installation, inspect for leakage and re-tighten if necessary.
Why Choose IGLELE?
IGLELE is one of India’s trusted industrial suppliers offering a comprehensive range of hose clips for industrial and commercial applications. We supply thousands of standard sizes and also manufacture non-standard hose clips according to customer drawings, hose diameters and special industrial requirements.
- Complete Range of Standard Sizes
- Custom Manufactured Hose Clips
- Heavy Duty Worm Drive Hose Clips
- Extra Wide Band Hose Clips
- Large Diameter Hose Clips
- OEM Manufacturing
- Bulk Supply Available
- Fast Dispatch Across India
- Industrial Quality Assurance
- Competitive Pricing
Standard & Non-Standard Manufacturing
IGLELE manufactures and supplies both standard and non-standard worm drive hose clips in Stainless Steel 304, Stainless Steel 316, Stainless Steel 202 and Carbon Steel. We can manufacture customized hose clips with special band widths, larger diameters, heavy-duty construction and customer-specific requirements for OEMs and industrial projects.
Industries Served
- Oil & Gas
- Chemical Plants
- Petrochemical Industries
- Food Processing
- Pharmaceutical Industry
- Water Treatment Plants
- Automobile Industry
- Agriculture Equipment
- Marine Industry
- Steel Plants
- Paper Mills
- Cement Plants
- Power Plants
- HVAC Industry
- OEM Equipment Manufacturers
Available Sizes
IGLELE offers Jolly Hose Clips from 12 mm to 22 Inch covering all standard IS and BS sizes. Custom sizes can also be manufactured against customer drawings or sample.
Technical Specifications – IGLELE Jolly SS304 Worm Drive Hose Clip
Bulk Orders & Custom Manufacturing
Looking for large quantities or special sizes? IGLELE specializes in manufacturing and supplying customized hose clips for OEMs, exporters, industrial maintenance companies, EPC contractors and project requirements. We offer attractive pricing for bulk orders and customized production.
Contact IGLELE Today
Need Standard or Non-Standard SS304 Worm Drive Hose Clips?
✔ Bulk Orders
✔ OEM Manufacturing
✔ Heavy Duty Hose Clips
✔ Customized Sizes
✔ PAN India Supply
✔ Export Orders Accepted
IGLELE – Industrial Goods Le Le.
