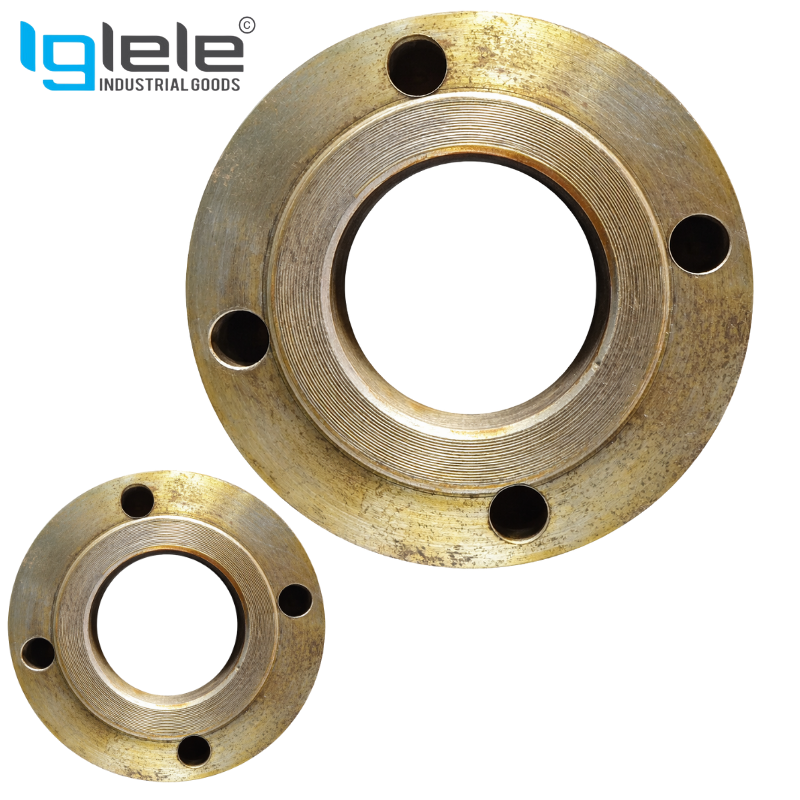

Ms Flange Asa150 Class (correct Thickness)

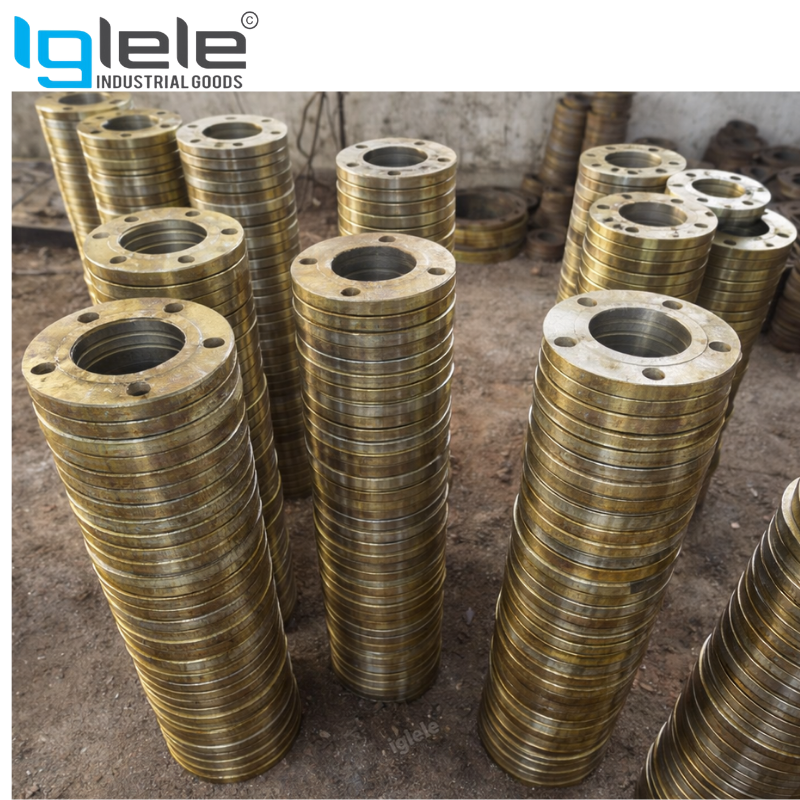

Ms Flange Asa150 Class (correct Thickness) - Image 2

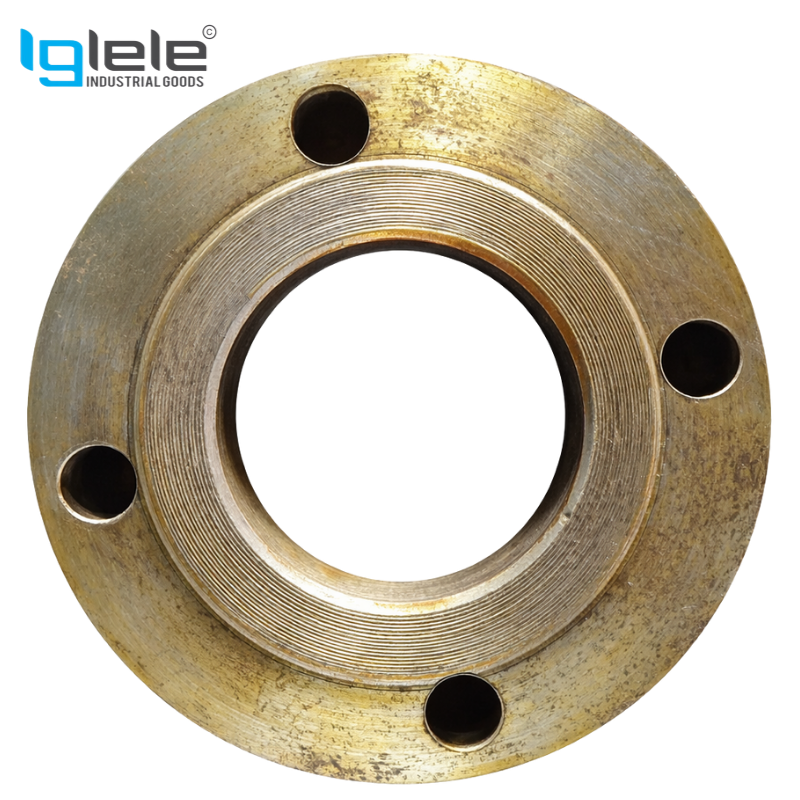

Ms Flange Asa150 Class (correct Thickness)

IGLELEMake in India
Brand Make in India
Product Code MSFL150H
Availability 48 Hrs
Class/Table ASA 150
Standard/Pressure As Per BS-10,ASA,ISS OR DIN
Finish One Sided Machined
Material M.S (Mild Steel)

Flanges specifications, including pressure, temperature, and material, may vary between manufacturers and sizes; customers are urged to order accordingly.

SKU: MSFL150H
Availability:

1000 in stock

₹85.00 ₹51.00

🔵 MS Flange – Class 150 Size Chart (ANSI / ASME B16.5)

Commercial Flanges | Manufacturer & Supplier – Iglele – Industrial Goods Le Le 💼📦✨

🔷 Product Overview

IGLELE Mild Steel (MS) Class 150 Flanges are heavy-duty industrial pipe flanges manufactured as per ANSI / ASME B16.5 standards.
These flanges are widely used in oil & gas pipelines, water systems, chemical plants, refineries, fire-fighting networks, HVAC and industrial utilities.

Class 150 flanges are designed for higher pressure and temperature compared to BS10 Table D flanges and are ideal for critical industrial piping systems.

🔷 MS Flange – Class 150 Size Chart

(ANSI / ASME B16.5 – Metric Dimensions used in India)

(ANSI / ASME B16.5 – Metric, Commercial Indian Use)

NB (Inch) Pipe OD (mm) Flange OD (mm) PCD (mm) Bolt Holes Hole Dia (mm) Thickness (mm)
½” 21.3 88.9 60.3 4 15.9 11.1
¾” 26.7 98.4 69.9 4 15.9 12.7
1″ 33.4 108.0 79.4 4 15.9 14.3
1¼” 42.2 117.5 88.9 4 15.9 15.9
1½” 48.3 127.0 98.4 4 15.9 17.5
2″ 60.3 152.4 120.7 4 19.1 19.1
2½” 73.0 177.8 149.2 8 19.1 20.6
3″ 88.9 190.5 154.9 8 19.1 22.2
4″ 101.6 228.6 177.8 8 19.1 23.8
5″ 127.0 254.0 209.6 8 22.2 25.4
6″ 152.4 279.4 235.0 8 22.2 26.9
8″ 219.1 342.9 292.1 8 22.2 30.2
10″ 273.0 406.4 355.6 12 25.4 33.3
12″ 323.9 482.6 406.4 12 25.4 35.0
14″ 355.6 533.4 457.2 12 28.6 38.1
16″ 406.4 596.9 514.4 16 28.6 41.3
18″ 457.2 635.0 546.1 16 31.8 44.5
20″ 508.0 698.5 609.6 20 31.8 47.6
24″ 609.6 812.8 717.6 20 35.0 53.9
30″ 762.0 965.2 863.6 28 38.1 63.5
36″ 914.4 1117.6 1016.0 32 41.3 69.9

(Dimensions as per ANSI / ASME B16.5 Class 150 standard – commonly used in India and international projects)

🔷 Pressure & Temperature Rating

  • Pressure Class: Class 150

  • Approx. Working Pressure: ~19.6 Bar (285 PSI)

  • Temperature Range: Depends on material & gasket selection

Class 150 flanges are suitable for higher pressure and temperature than BS10 Table D (PN10) flanges.

🔷 Applicable Standards

IGLELE Class 150 flanges comply with:

  • ANSI / ASME B16.5

  • ASTM A36 / ASTM A105 (Material)

  • IS 2062 (MS Material)

  • DIN / EN / ISO (on request)

🔷 Material & Surface Finish

  • Material:

    • Mild Steel (IS 2062 / ASTM A36)

    • Carbon Steel (ASTM A105 – on request)

  • Finish:

    • Black finish

    • Zinc plated

    • Hot Dip Galvanized

🔷 Flange Types Available

  • Slip On (SO)

  • Weld Neck (WN)

  • Blind

  • Socket Weld

  • Threaded

🔷 Flange Facing & Bore

  • Facing:

    • Raised Face (RF) – Standard

    • Flat Face (FF) – On request

  • Bore:

    • Plain bore

    • Machined to pipe OD

    • As per drawing

🔷 Gasket Compatibility

Service Recommended Gasket
Water Rubber / CNAF
Oil CNAF / PTFE
Chemical PTFE
Steam Spiral Wound
Food & Pharma PTFE / Silicone

🔷 Installation Guidelines

✔ Clean flange faces
✔ Use correct size gasket
✔ Tighten bolts in cross pattern
✔ Apply proper torque
✔ Conduct hydro / air pressure testing

🔷 Quality & Inspection

  • Visual inspection

  • Dimensional check

  • PMI & Hydro testing available on request

🔷 Important Availability Notice

⚠ IGLELE does not manufacture or stock all flange sizes and types.
Availability depends on size, material, pressure class and standard.
Please confirm with our sales team before placing an order.

🔷 Custom Flange Manufacturing – IGLELE

IGLELE manufactures custom flanges in:

  • Mild Steel (MS)

  • Stainless Steel (SS 304 / 316 / 316L)

  • Carbon Steel

  • Alloy Steel

  • Duplex & Super Duplex

We supply:
✔ Non-standard sizes
✔ Special PCD & OD
✔ Heavy-duty thickness
✔ Drawing-based & OEM flanges

🔷 How to Order

To quote correctly, please share:

  • Size (NB / Inch)

  • Pressure Class (Class 150 / 300 / etc.)

  • Flange Type (SO / WN / BL)

  • Facing (RF / FF)

  • Quantity

  • Application

🔵 Order Now – Contact IGLELE

📞 Call Now: +91 9800150888
📧 sales@iglele.com
🌐 www.iglele.com

Iglele – Industrial Goods Le Le 💼📦✨
Your trusted manufacturer and global supplier of MS flanges, SS flanges, pipe fittings and custom-engineered industrial components.

Disclaimer: All flange dimensions provided on this website are based on standard BS, ANSI, DIN or equivalent commercial specifications. Actual dimensions may vary slightly due to manufacturing tolerances, material type, machining process and commercial production practices. Buyers are advised to verify all critical dimensions, drilling, PCD, thickness and facing before placing an order. IGLELE shall not be responsible for any dimensional variation or mismatch arising from commercial flange supply. For applications requiring precise dimensions, tight tolerances or project-specific standards, please contact IGLELE before placing an order for confirmation and custom manufacturing.

SKU: MSFL150H Category:
Flange End Dimension
