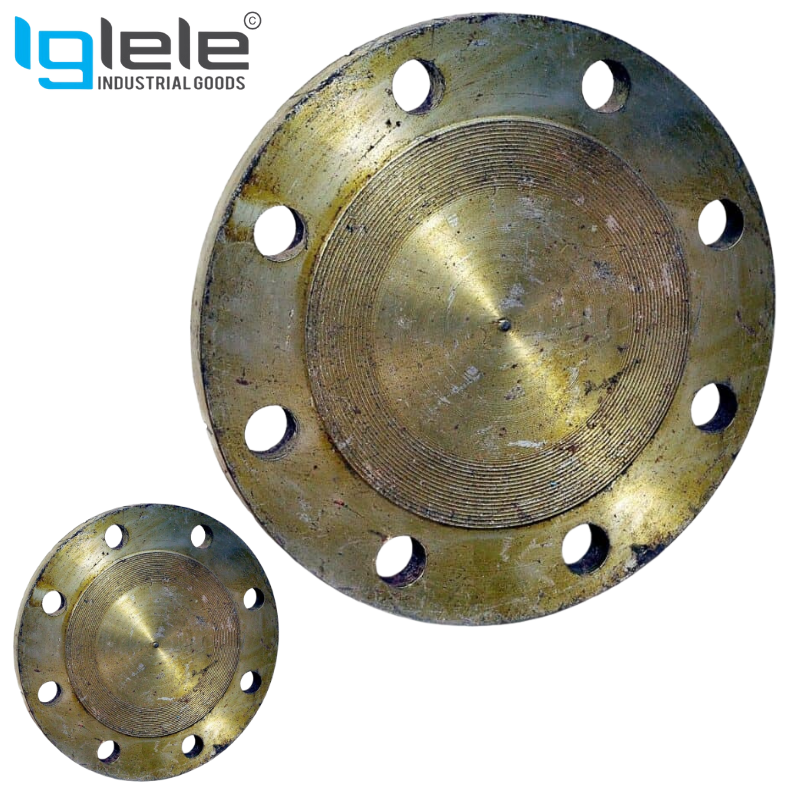

Iglele MS Blind/Dummy Flange ASA 150 Class – ASME B16.5, Heavy Duty Correct Thickness
Iglele MS Blind/Dummy Flange ASA 150 Class – ASME B16.5, Heavy Duty Correct Thickness - Image 2
Iglele MS Blind/Dummy Flange ASA 150 Class – ASME B16.5, Heavy Duty Correct Thickness - Image 3

Iglele MS Blind/Dummy Flange ASA 150 Class – ASME B16.5, Heavy Duty Correct Thickness

IGLELEMake in India
Brand Make in India
Product Code MSFL150HB
Availability 48 Hrs
Class/Table ASA 150
Standard/Pressure As Per BS-10,ASA,ISS OR DIN
Finish One Sided Machined
Material M.S (Mild Steel)

Flanges specifications, including pressure, temperature, and material, may vary between manufacturers and sizes; customers are urged to order accordingly.

SKU: MSFL150HB
Availability:

1000 in stock

₹127.00 ₹76.00

🔵 MS Flange – Class 150 Size Chart (ANSI / ASME B16.5)

Commercial Flanges | Manufacturer & Supplier – Iglele – Industrial Goods Le Le 💼📦✨

🔷 Product Overview

IGLELE Mild Steel (MS) Class 150 Flanges are heavy-duty industrial pipe flanges manufactured as per ANSI / ASME B16.5 standards.
These flanges are widely used in oil & gas pipelines, water systems, chemical plants, refineries, fire-fighting networks, HVAC and industrial utilities.

Class 150 flanges are designed for higher pressure and temperature compared to BS10 Table D flanges and are ideal for critical industrial piping systems.

🔷 MS Flange – Class 150 Size Chart / Data Sheet

(ANSI / ASME B16.5 – Metric Dimensions used in India)

(ANSI / ASME B16.5 – Metric, Commercial Indian Use)

NB (Inch) Pipe OD (mm) Flange OD (mm) PCD (mm) Bolt Holes Hole Dia (mm) Thickness (mm)
½” 21.3 88.9 60.3 4 15.9 11.1
¾” 26.7 98.4 69.9 4 15.9 12.7
1″ 33.4 108.0 79.4 4 15.9 14.3
1¼” 42.2 117.5 88.9 4 15.9 15.9
1½” 48.3 127.0 98.4 4 15.9 17.5
2″ 60.3 152.4 120.7 4 19.1 19.1
2½” 73.0 177.8 149.2 8 19.1 20.6
3″ 88.9 190.5 154.9 8 19.1 22.2
4″ 101.6 228.6 177.8 8 19.1 23.8
5″ 127.0 254.0 209.6 8 22.2 25.4
6″ 152.4 279.4 235.0 8 22.2 26.9
8″ 219.1 342.9 292.1 8 22.2 30.2
10″ 273.0 406.4 355.6 12 25.4 33.3
12″ 323.9 482.6 406.4 12 25.4 35.0
14″ 355.6 533.4 457.2 12 28.6 38.1
16″ 406.4 596.9 514.4 16 28.6 41.3
18″ 457.2 635.0 546.1 16 31.8 44.5
20″ 508.0 698.5 609.6 20 31.8 47.6
24″ 609.6 812.8 717.6 20 35.0 53.9
30″ 762.0 965.2 863.6 28 38.1 63.5
36″ 914.4 1117.6 1016.0 32 41.3 69.9

(Dimensions as per ANSI / ASME B16.5 Class 150 standard – commonly used in India and international projects)

🔷 Pressure & Temperature Rating

  • Pressure Class: Class 150

  • Approx. Working Pressure: ~19.6 Bar (285 PSI)

  • Temperature Range: Depends on material & gasket selection

Class 150 flanges are suitable for higher pressure and temperature than BS10 Table D (PN10) flanges.

🔷 Applicable Standards

IGLELE Class 150 flanges comply with:

  • ANSI / ASME B16.5

  • ASTM A36 / ASTM A105 (Material)

  • IS 2062 (MS Material)

  • DIN / EN / ISO (on request)

🔷 Material & Surface Finish

  • Material:

    • Mild Steel (IS 2062 / ASTM A36)

    • Carbon Steel (ASTM A105 – on request)

  • Finish:

    • Black finish

    • Zinc plated

    • Hot Dip Galvanized

🔷 Flange Types Available

  • Slip On (SO)

  • Weld Neck (WN)

  • Blind

  • Socket Weld

  • Threaded

🔷 Flange Facing & Bore

  • Facing:

    • Raised Face (RF) – Standard

    • Flat Face (FF) – On request

  • Bore:

    • Plain bore

    • Machined to pipe OD

    • As per drawing

🔷 Gasket Compatibility

Service Recommended Gasket
Water Rubber / CNAF
Oil CNAF / PTFE
Chemical PTFE
Steam Spiral Wound
Food & Pharma PTFE / Silicone

🔷 Installation Guidelines

✔ Clean flange faces
✔ Use correct size gasket
✔ Tighten bolts in cross pattern
✔ Apply proper torque
✔ Conduct hydro / air pressure testing

🔷 Quality & Inspection

  • Visual inspection

  • Dimensional check

  • PMI & Hydro testing available on request

🔷 Important Availability Notice

⚠ IGLELE does not manufacture or stock all flange sizes and types.
Availability depends on size, material, pressure class and standard.
Please confirm with our sales team before placing an order.

🔷 Custom Flange Manufacturing – IGLELE

IGLELE manufactures custom flanges in:

  • Mild Steel (MS)

  • Stainless Steel (SS 304 / 316 / 316L)

  • Carbon Steel

  • Alloy Steel

  • Duplex & Super Duplex

We supply:

✔ Non-standard sizes
✔ Special PCD & OD
✔ Heavy-duty thickness
✔ Drawing-based & OEM flanges

🔷 How to Order

To quote correctly, please share:

  • Size (NB / Inch)

  • Pressure Class (Class 150 / 300 / etc.)

  • Flange Type (SO / WN / BL)

  • Facing (RF / FF)

  • Quantity

  • Application

🔵 Order Now – Contact IGLELE

📞 Call Now: +91 9800150888
📧 sales@iglele.com
🌐 www.iglele.com

Iglele – Industrial Goods Le Le 💼📦✨
Your trusted manufacturer and global supplier of MS flanges, SS flanges, pipe fittings and custom-engineered industrial components.

SKU: MSFL150HB Category:
Flange End Dimension

1/2"(15MM), 3/4"(20MM), 1"(25MM), 11/4"(32MM), 11/2"(40MM), 2"(50MM), 21/2"(65MM), 3"(80MM), 4"(100MM), 5"(125MM), 6"(150MM), 8"(200MM), 10"(250MM), 12"(300MM), 14"(350MM), 16"(400MM), 18"(450MM), 20"(500MM), 24"(600MM)
