Iglele MS Slip On Flange BS 10 Table E – Commercial Series, Mild Steel Pipe Flange

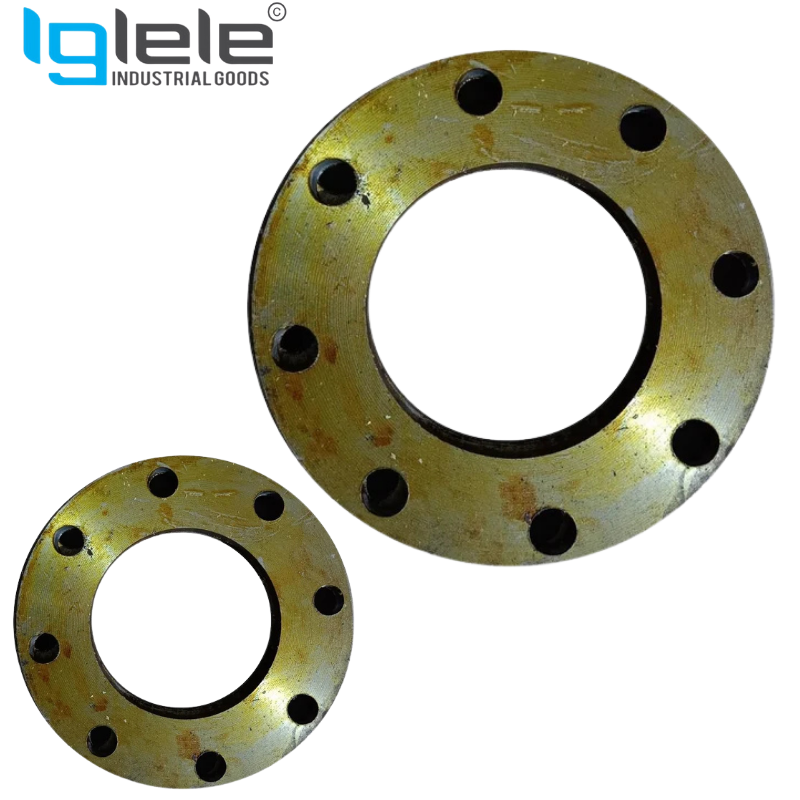

Iglele MS Slip On Flange BS 10 Table E – Commercial Series, Mild Steel Pipe Flange - Image 2

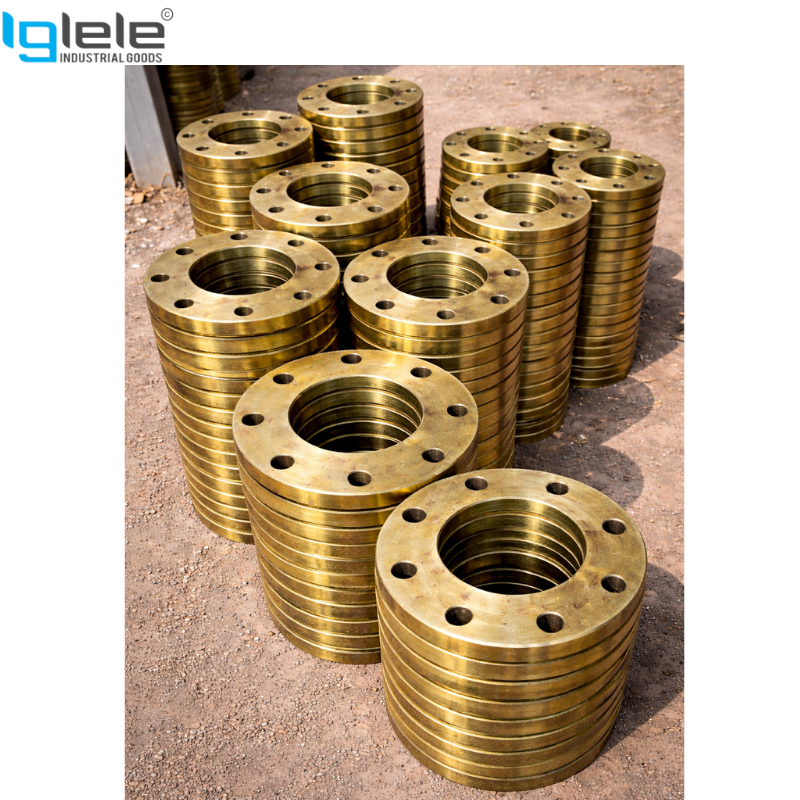

Iglele MS Slip On Flange BS 10 Table E – Commercial Series, Mild Steel Pipe Flange - Image 3

Iglele MS Slip On Flange BS 10 Table E – Commercial Series, Mild Steel Pipe Flange

IGLELEMake in India
Brand Make in India
Product Code MSFLES
Availability 48 Hrs
Class/Table E Table
Standard/Pressure As Per BS-10,ASA,ISS OR DIN
Finish One Sided Machined
Material M.S (Mild Steel)

Flanges specifications, including pressure, temperature, and material, may vary between manufacturers and sizes; customers are urged to order accordingly.

Add to wishlist
SKU: MSFLES
Availability:

1000 in stock

₹77.00 ₹54.00

Add to wishlist

🔵 MS Flange – BS 10 Table E (PN16) | IGLELE Commercial Flange Data Sheet

Manufacturer & Exporter – Iglele – Industrial Goods Le Le 💼📦✨

🔷 Product Overview

IGLELE Mild Steel (MS) Flanges – BS 10 Table E (PN16) are high-pressure industrial pipe flanges designed for 16 bar working pressure.
These flanges are widely used in water supply, oil pipelines, fire-fighting systems, chemical plants, refineries, HVAC and industrial piping networks.

Table E flanges are stronger than Table D (PN10) and are commonly used where higher pressure and safety margin is required.

🔷 MS Flange – BS 10 Table E Dimension Chart / Data Sheet

Standard: BS 10 – Table E (Medium Working Steam Pressure up to ~100 lbs/sq. in)
Material: Mild Steel (MS)
Type: Slip-On / Weld Neck / Blind Flange
Facing: Flat Face
📏 All dimensions in mm

Nominal Size Pipe O.D Flange O.D Bolt Circle (PCD) No. of Bolts Bolt Dia Thickness
1/2″ 21.3 95.3 66.3 4 12.7 6
3/4″ 26.7 101.6 73.0 4 12.7 6
1″ 33.4 114.3 82.6 4 12.7 7.1
1¼″ 42.2 120.7 87.3 4 12.7 7.9
1½″ 48.3 133.4 98.4 4 12.7 8.7
2″ 60.3 152.4 114.3 4 15.9 9
2½″ 73.0 165.1 127.0 4 15.9 10
3″ 88.9 184.2 146.1 4 15.9 10
3½″ 101.6 203.2 165.1 8 15.9 10
4″ 114.3 215.9 177.8 8 15.9 10
5″ 141.3 254.0 209.6 8 15.9 12
6″ 168.3 279.4 228.6 8 19.1 14
7″ 190.5 304.8 260.4 8 19.1 14
8″ 219.1 336.6 292.1 8 19.1 14
9″ 244.5 368.3 323.9 12 19.1 14
10″ 273.0 406.4 355.6 12 19.1 15
12″ 323.9 457.2 406.4 12 22.2 15
14″ 355.6 527.2 469.9 12 22.2 22/24
16″ 406.4 577.9 520.7 12 22.2 22/24
18″ 457.2 641.4 584.2 16 22.2 22/24
20″ 508.0 704.9 641.4 16 22.2 26/28
24″ 609.6 825.5 755.7 16 25.4 30

🔷 Standards & Compliance

  • BS 10 – Table E (PN16)

  • IS 1538

  • IS 2062 (MS Material)

  • ASTM A36 / ASTM A105 (on request)

  • DIN / EN / ANSI / ISO flanges available by custom order

🔷 Material & Surface Finish

  • Material: Mild Steel (IS 2062 / ASTM A36)

  • Finish Options:

    • Black finish

    • Zinc plated

    • Hot-dip galvanized (HDG)

🔷 Flange Types Available

  • Slip-On (SO)

  • Weld-Neck (WN)

  • Blind (BL)

  • Socket-Weld

  • Threaded

🔷 Flange Facing & Bore

  • Facing: Raised Face (RF) standard

  • Flat Face (FF) on request

  • Bore:

    • Plain bore

    • Machined to pipe OD

    • As per drawing

🔷 Pressure & Temperature Rating

  • Working Pressure: PN16 (16 Bar)

  • Temperature Limit: Up to 120 °C for MS (higher temperature requires SS or alloy steel)

🔷 Recommended Gaskets

Media Gasket Type
Water Rubber / CNAF
Oil CNAF / PTFE
Chemical PTFE
Steam Spiral Wound
Food & Pharma PTFE / Silicone

🔷 Installation Guidelines

✔ Clean flange faces
✔ Center gasket properly
✔ Tighten bolts in cross pattern
✔ Use correct bolt torque
✔ Perform pressure test after installation

🔷 Quality & Testing

  • Visual inspection

  • Dimensional inspection

  • PMI / Hydro test available on request

🔷 Important Availability Note

⚠ IGLELE does not manufacture or stock all flange sizes and types.
Large sizes (above 12″) are usually made-to-order.
Please confirm availability, price and delivery time before placing order.

🔷 Custom Flange Manufacturing – IGLELE

We manufacture flanges in:

  • Mild Steel

  • Stainless Steel (SS 304 / 316 / 316L)

  • Carbon Steel

  • Alloy Steel

  • Duplex & Super Duplex

We provide:

✔ Non-standard sizes
✔ Special OD & PCD
✔ Extra-thick flanges
✔ Drawing-based & OEM flanges

🔷 How to Order

To get the correct quotation, please share:

  • Size (NB / Inch)

  • Pressure Class (PN16 / Class 150 etc.)

  • Flange Type (SO / WN / BL)

  • Facing (RF / FF)

  • Quantity

  • Application (water, oil, chemical, etc.)

🔵 Order Now from IGLELE

📞 Call: +91 9800150888
📧 sales@iglele.com
🌐 www.iglele.com

Iglele – Industrial Goods Le Le 💼📦✨
Your trusted Indian manufacturer & global exporter of MS flanges, SS flanges, pipe fittings and custom-engineered industrial components.
