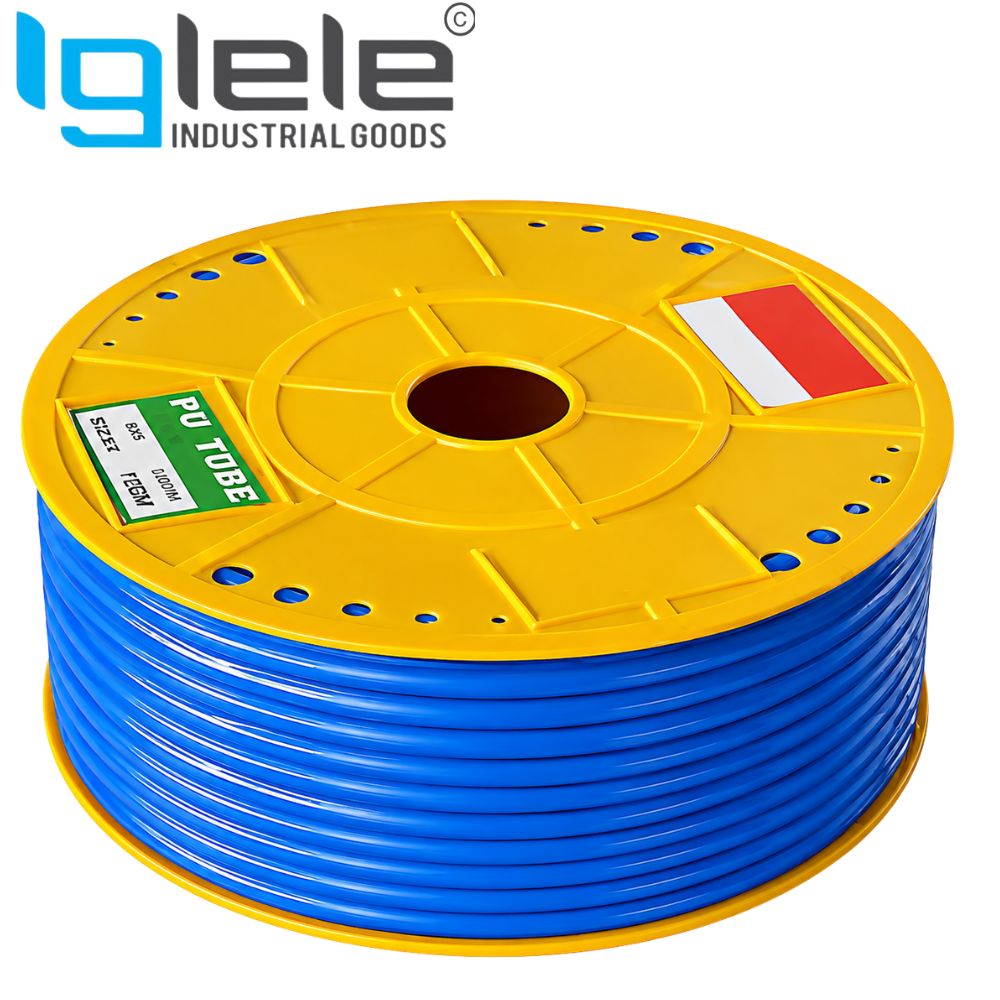

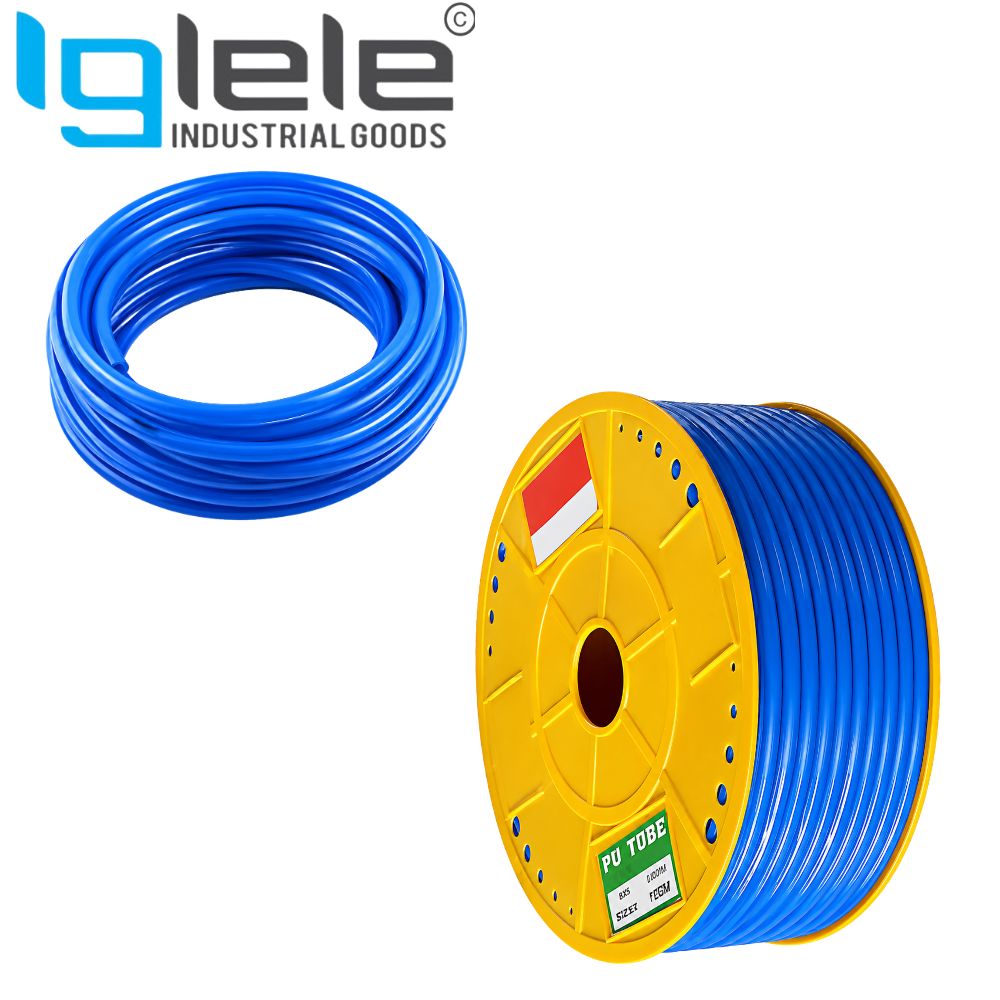

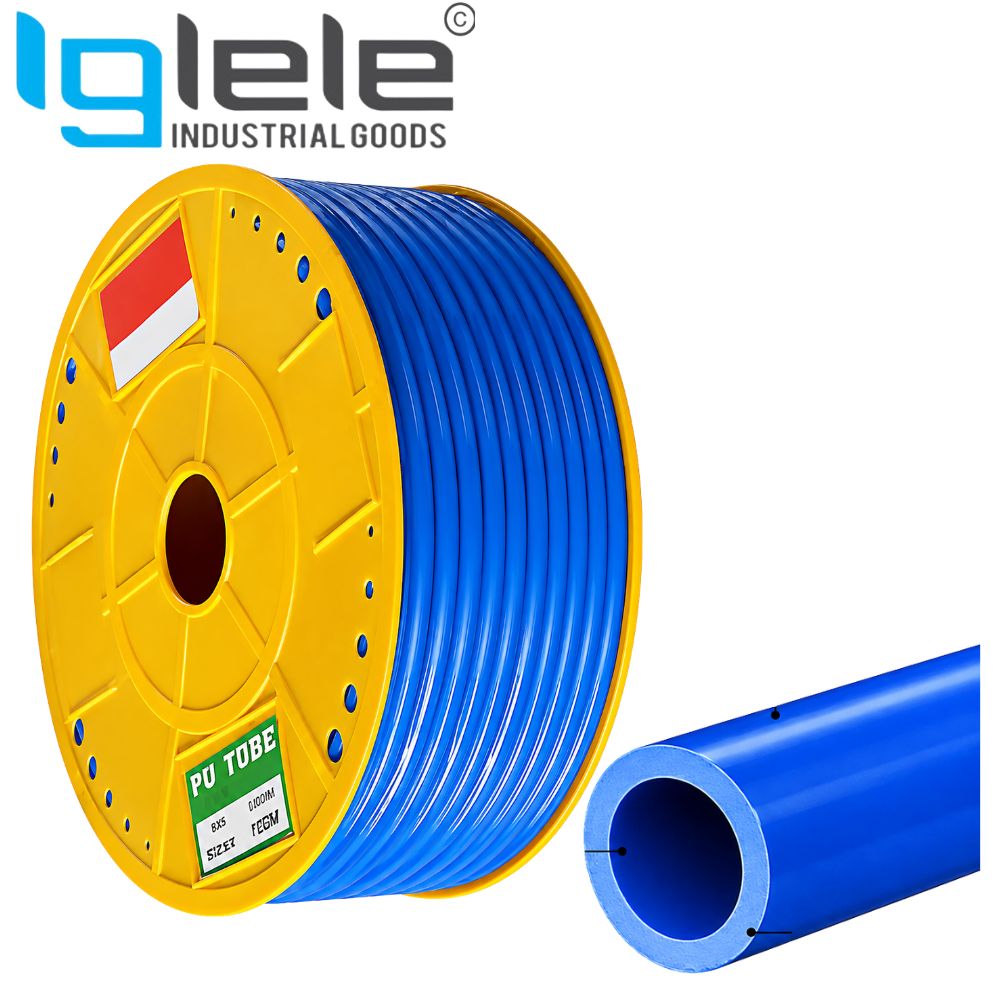

Blue Polyurethane (PU) Pneumatic Air Tube – Flexible Industrial Air Hose PU Tubes (Per Meter)
Blue Polyurethane (PU) Pneumatic Air Tube – Flexible Industrial Air Hose PU Tubes (Per Meter) - Image 2
Blue Polyurethane (PU) Pneumatic Air Tube – Flexible Industrial Air Hose PU Tubes (Per Meter) - Image 3

Blue Polyurethane (PU) Pneumatic Air Tube – Flexible Industrial Air Hose PU Tubes (Per Meter)

Phoneix
Specification Details
Brand PHONEIX
Product Code / SKU PUPHT
Availability Ready Stock – Dispatch within 24–48 Hours
Material Premium Polyurethane (PU)
Supply Length Per Meter
Temperature Range Approx. -20°C to +60°C
Colour Blue
Application Pneumatic Air Lines, Air Cylinders, Automation Systems, Pneumatic Tools, Industrial Machinery, Packaging Equipment, Robotics & General Compressed Air Applications
SKU: PUPHT
Availability:

100 in stock

₹17.40 ₹12.18

Blue Polyurethane (PU) Pneumatic Air Tube – Flexible Industrial Air Hose PU Tube (Per Meter)

Key Features :

  • Premium-quality flexible PU construction
  • Excellent flexibility and elasticity
  • High pressure resistance
  • Superior abrasion and wear resistance
  • Good oil and chemical resistance
  • Smooth inner surface for efficient airflow
  • Kink-resistant and easy to route
  • Lightweight and easy to install
  • Excellent dimensional stability
  • Compatible with push-in pneumatic fittings
  • Long service life
  • Low maintenance

Size Chart

OD × ID Approx. Inch OD Supply
4 × 2.5 mm 5/32″ Per Meter
6 × 4 mm 1/4″ Per Meter
8 × 5 mm 5/16″ Per Meter
8 × 6 mm 5/16″ Per Meter
10 × 6.5 mm 3/8″ Per Meter
10 × 8 mm 3/8″ Per Meter
12 × 8 mm 1/2″ Per Meter
12 × 10 mm 1/2″ Per Meter
16 × 12 mm 5/8″ Per Meter

Applications

Industry Application
Pneumatic Automation Air Cylinders & Actuators
Manufacturing Machine Air Lines
Automotive Pneumatic Tools
Packaging Pneumatic Machinery
Textile Automation Equipment
Engineering Instrument Air Lines
Robotics Flexible Air Supply
Industrial Plants Compressed Air Distribution

Material

Component Material
Tube Body Polyurethane (PU)
Inner Surface Smooth PU Bore
Outer Surface Abrasion-Resistant PU
Colour Blue

Where It Is Used / How to Use

  1. Select the correct tube size for the pneumatic fitting.
  2. Cut the tube cleanly and squarely.
  3. Insert the tube fully into the push-in or compression fitting.
  4. Route without sharp bends or excessive tension.
  5. Check all connections for air leakage.
  6. Operate within recommended pressure and temperature limits.

Technical Details & Specifications

Specification Details
Product Type PU Pneumatic Air Tube
Material Polyurethane (PU)
Construction Extruded Single-Layer Tube
Working Media Compressed Air
Flexibility Excellent
Connection Push-In / Compression Fittings
Supply Per Meter

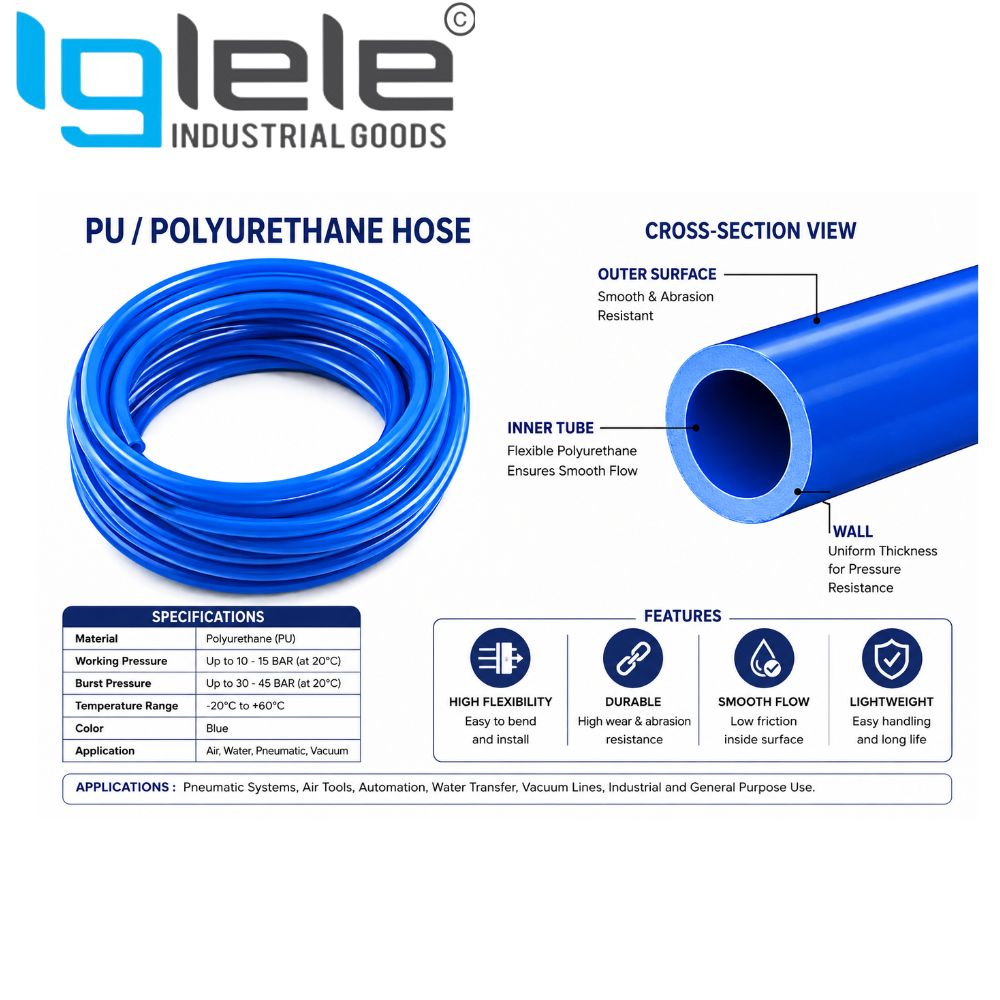

Construction Details

Part Description
Tube Wall Flexible Polyurethane
Inner Bore Smooth for Efficient Airflow
Outer Surface Abrasion-Resistant PU

Available Standard Sizes

  • 4 × 2.5 mm
  • 6 × 4 mm
  • 8 × 5 mm
  • 8 × 6 mm
  • 10 × 6.5 mm
  • 10 × 8 mm
  • 12 × 8 mm
  • 12 × 10 mm
  • 16 × 12 mm

Custom sizes and lengths available on request.

Advantages

  • Excellent flexibility
  • High pressure capability
  • Superior abrasion resistance
  • Lightweight construction
  • Good oil and chemical resistance
  • Smooth airflow
  • Kink resistant
  • Easy installation
  • Long service life
  • Suitable for industrial automation

Temperature & Other Details

Parameter Details
Working Temperature Approx. -20°C to +60°C
Working Media Compressed Air
Oil Resistance Good
Chemical Resistance Good
Abrasion Resistance Excellent
Flexibility Excellent
UV Resistance Good
Indoor / Outdoor Use Suitable

Package Includes

Item Quantity
Blue PU Pneumatic Air Tube Per Meter (As Ordered)

Custom Manufacturing & Bulk Orders

IGLELE offers:

  • Custom tube diameters
  • Custom lengths
  • Custom colours
  • OEM & private-label manufacturing
  • Bulk industrial supply
  • Wholesale & export orders
  • Custom pneumatic tubing solutions

Contact IGLELE for Bulk & Custom Orders

IGLELE E Commerce LLP
Website: IGLELE.com
Phone: +91 9800150888
Email: sales@iglele.com

Contact IGLELE for bulk pricing, OEM manufacturing, custom blue PU tubes, pneumatic air lines, automation tubing, and industrial compressed-air solutions.
