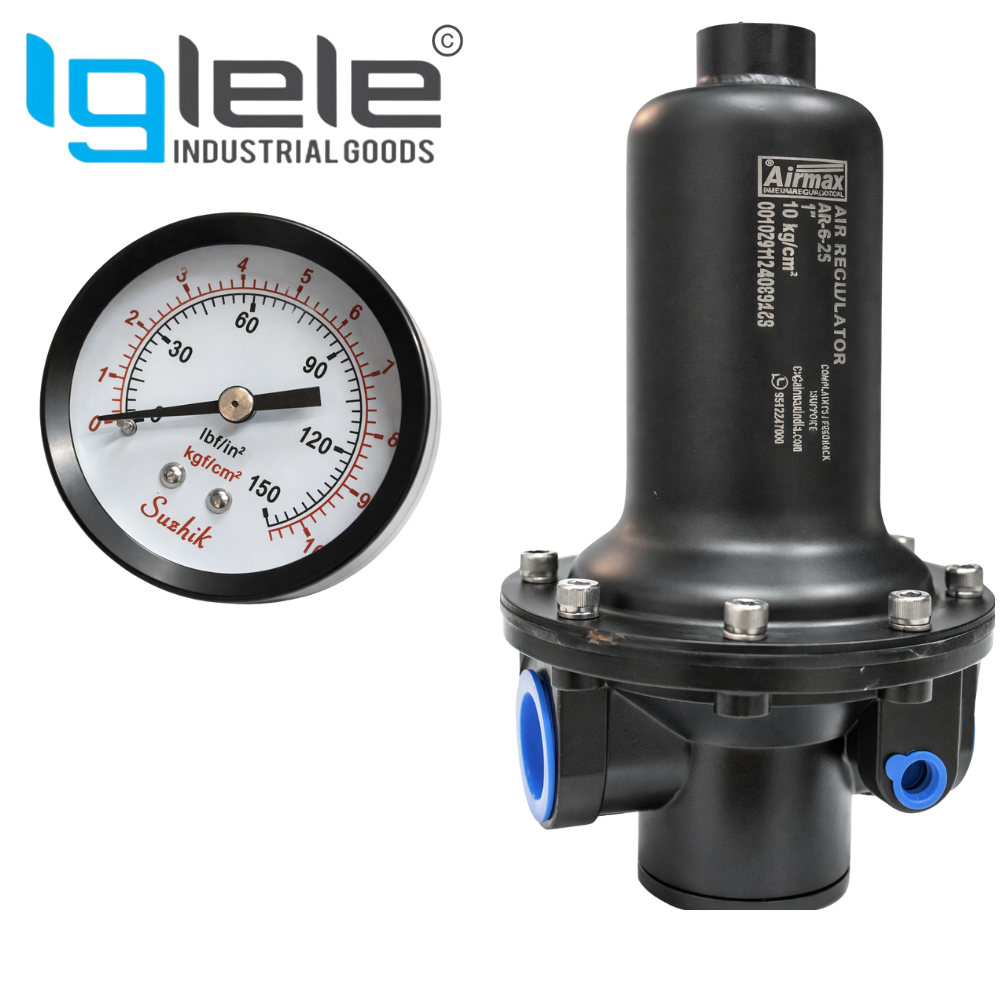

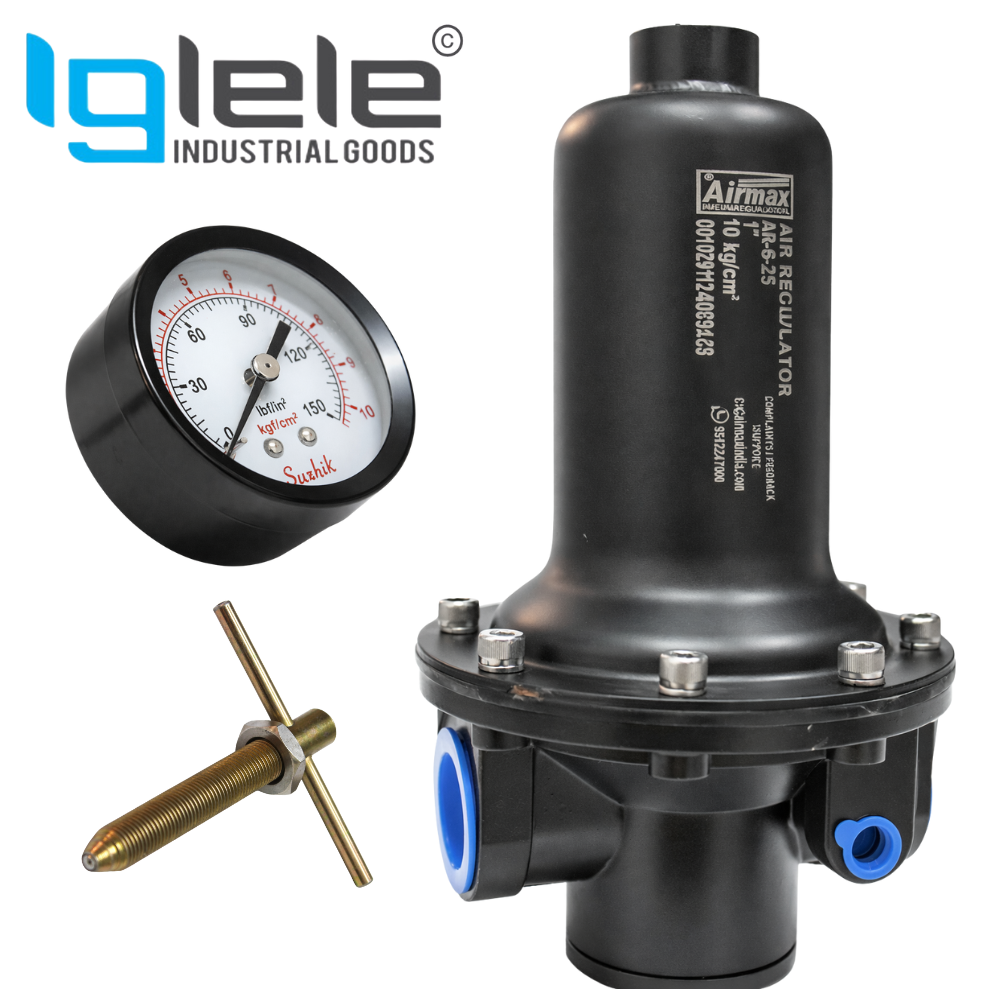

IGLELE × Airmax Heavy-Duty RM Series Air Pressure Regulator
| Brand | Airmax |
|---|---|
| Product Code | REG HP |
| Availability | 48 Hrs |
| Pressure Rating | Upto 10 kg/cm2. |
996 in stock
₹2,518.40 ₹1,574.00
🔵 IGLELE × AIRMAX
STANDARD SERIES – RM MODEL AIR REGULATOR
(High-performance air control solution for every industrial application)
IGLELE and Airmax Pneumatic Products are working together to bring you a reliable, heavy-duty and high-flow Air Regulator that gives stable and accurate air pressure for your machines, tools and automation lines.
All data below is taken directly from the Airmax RM Standard Series Technical Datasheet
RM STD AIR REGULETOR
🔵 PRODUCT FEATURES
✔ High Flow Design
✔ Heavy Duty & Durable Construction
✔ Suitable for All Industrial Applications
✔ Easy Pressure Adjustment (T-Handle Type)
✔ Works with Clean Compressed Air
✔ Long Life Seals and Springs
This makes IGLELE Airmax RM Air Regulator ideal for:
-
Pneumatic tools
-
Automation machines
-
Packaging lines
-
Assembly lines
-
Air distribution systems
🔵 TECHNICAL SPECIFICATIONS
| Parameter | Details |
|---|---|
| Models | AR-S-02, AR-S-04, AR-S-05, AR-S-06, AR-S-07, AR-S-08 |
| Port Sizes | 1/4″, 1/2″, 3/4″, 1″, 1-1/2″, 2″ |
| Max Working Pressure | Up to 10 kg/cm² (max.) |
| Max Operating Temperature | 50°C |
| Seal Material | NBR |
| Adjustment Type | T-Handle (Turn clockwise to increase pressure) |
| Media | Compressed Air |
RM STD AIR REGULETOR
🔵 MODEL WISE SIZES, FLOW & WEIGHT
| Model | Port Size | L (mm) | A (mm) | C (mm) | Flow @ 5 Bar (LPM) | Weight (Kg) |
|---|---|---|---|---|---|---|
| AR-S-02 | 1/4″ | 72 | 190 | 30 | 60 | 0.580 |
| AR-S-04 | 1/2″ | 72 | 190 | 30 | 80 | 0.520 |
| AR-S-05 | 3/4″ | 110 | 290 | 51.5 | 375 | 2.080 |
| AR-S-06 | 1″ | 110 | 290 | 51.5 | 375 | 2.050 |
| AR-S-07 | 1-1/2″ | 141 | 340 | 60 | 450 | 2.930 |
| AR-S-08 | 2″ | 141 | 340 | 60 | 600 | 2.900 |
RM STD AIR REGULETOR
🔵 INTERNAL PARTS & MATERIAL
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | Aluminium Die-Cast |
| 2 | Bottom | Nylon / Aluminium |
| 3 | Plunger Spring | Spring Steel |
| 4 | O-Ring | NBR |
| 5 | Plunger with Rubber Moulded | Brass / Aluminium with Rubber |
| 6 | Diaphragm | P.U. |
| 7 | Pressure Spring | Spring Steel |
| 8 | Pressure Plate | Steel Plated / Aluminium |
| 9 | Cap Cover | Aluminium |
| 10 | Adjusting ‘T’ Stud | Steel Plated |
| 11 | Screw | Steel Plated |
| 12 | Check Nut | Brass |
RM STD AIR REGULETOR
🔵 WHY BUY AIRMAX RM FROM IGLELE?
✔ 100% Genuine Airmax Products
✔ Ready Stock of All RM Models
✔ Expert Technical Support
✔ Fast Dispatch
✔ Best Price Assurance
✔ Trusted Industrial Supplier
When you buy Airmax RM Air Regulator from IGLELE, you get reliability, support and original quality – all in one place.
